MMI Satellite Radio (R146) Connectors, Through 10.2008

MMI Satellite Radio (R146) Connectors, through 10.2008

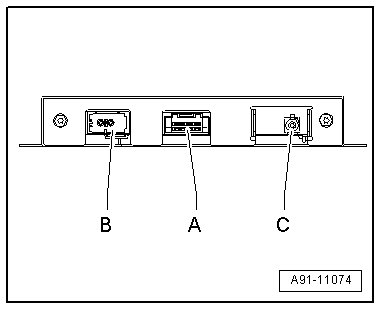

Satellite Radio





A 8-pin connector (T8p)
B MOST Bus
C Antenna connection (SAT), from the radio, telephone, navigation system antenna (R52) ( satellite antenna (R170) )

• Unlisted connector terminals are not used.

A - 8-pin Connector (T8p)





1 Terminal 31
2 Terminal 30
5 Ring-break diagnostic wire

B - MOST Bus





1. Input

2. Output
