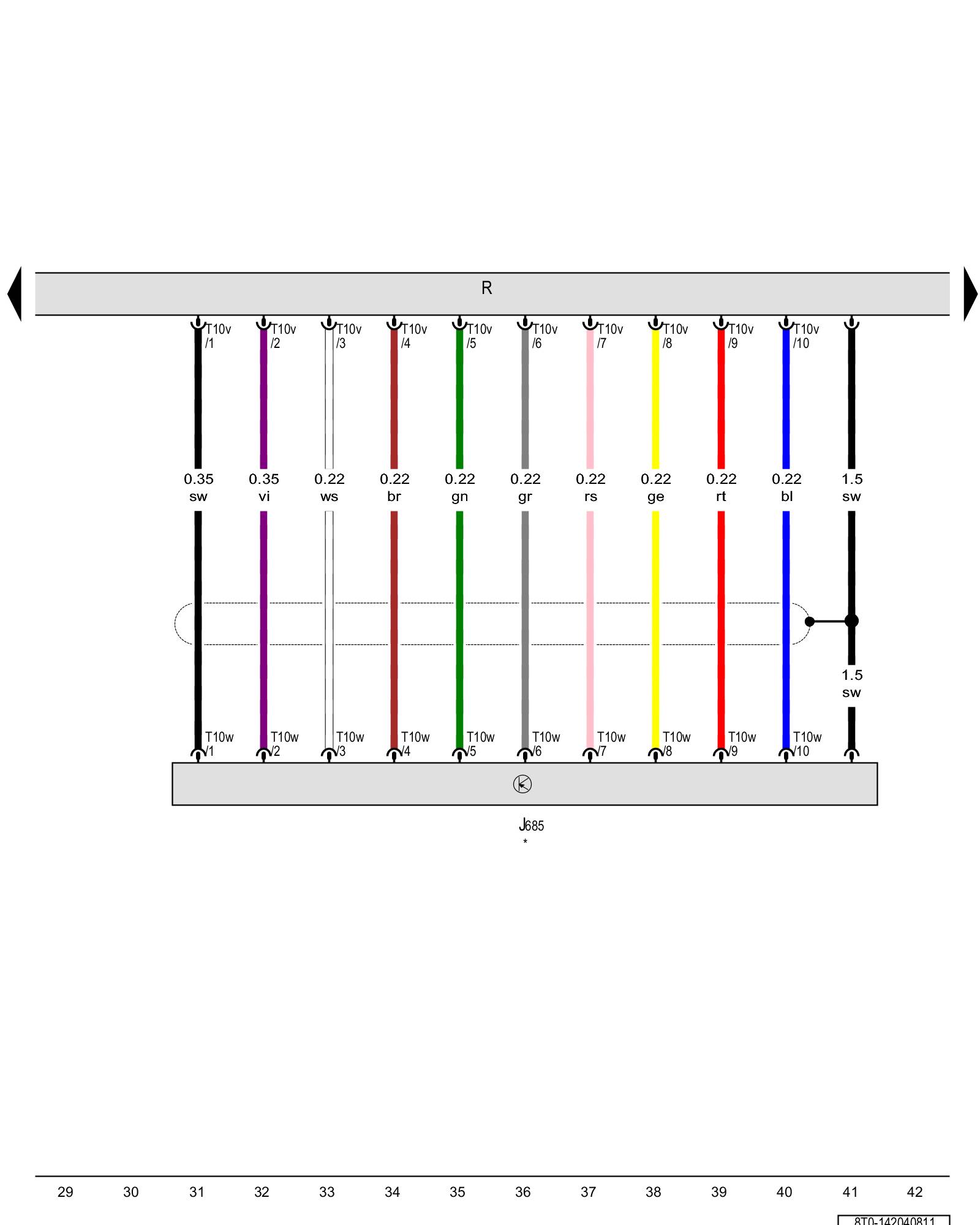

Diagram 142/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front information display control head, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J685 - Front information display control head Overview of Control modules in interior of vehicle Coupe (2-door models)

R - Radio Overview of Control modules in interior of vehicle Coupe (2-door models)

T10v - 10-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

T10w - 10-pin connector Locations

* - Depending on equipment
