Diagram 57/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

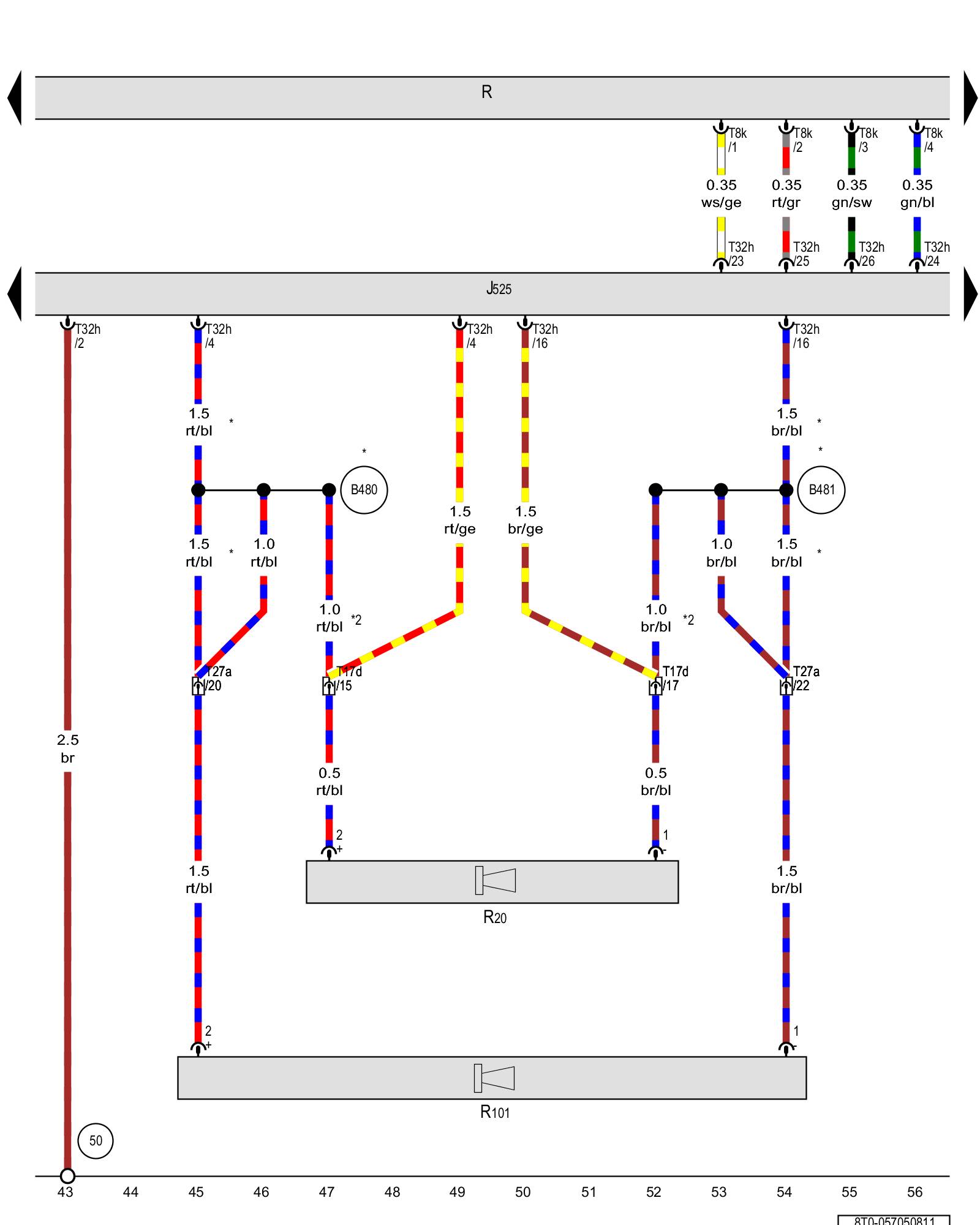

Digital sound system control module, Radio, Left front treble speaker, Left front mid-bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Overview of Control modules in rear part of vehicle - Coupe (2-door models)

R - Radio Overview of Control modules in interior of vehicle Coupe (2-door models)

R20 - Left front treble speaker Radio / Sound System Component Locations

R101 - Left front mid-bass speaker

T8k - 8-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

T17d - 17-pin connector Overview Of Connector Stations

T27a - 27-pin connector

T32h - 32-pin connector

(50) - Ground connection in luggage compartment, left Overview Of Ground Connections (2-door Models (Coupe))

(B480) - Connection 16 (in main wiring harness)

(B481) - Connection 17 (in main wiring harness)

* - Omitted as a running change

*2 - Diameter depends on equipment

Previous Diagram 57/4 (Tracks 29-42)

Next Diagram 57/6 (Tracks 57-70)
