Instruments - Cluster Illuminates When Opening Vehicle

90 Instrument cluster illumination

97 10 13

2019643/2

September 14, 2010

Supersedes Technical Service Bulletin Group 91 number 09-09 dated March 4, 2009 for reasons listed below.

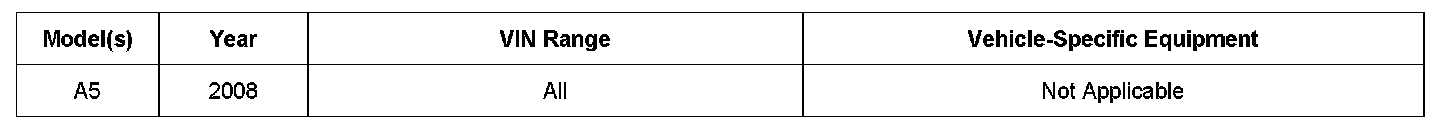

AFFECTED VEHICLES





CONDITION

The instrumentation in the cluster briefly illuminates when opening the vehicle.

TECHNICAL BACKGROUND

A false wake-up signal is sent to the cluster.

PRODUCTION SOLUTION

Central electrics control unit (J519) with software 253.

SERVICE

1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SUM), operating instructions.





2. Update the central electrics module J519 (address word 09) using SUM action code as listed in the table above if necessary.





WARRANTY

ADDITIONAL INFORMATION

The following Technical Service Bulletin will be necessary to complete this procedure:

^ TSB 2011732 00 Software Version Management (SUM), operating instructions.

ADDITIONAL INFORMATION

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.

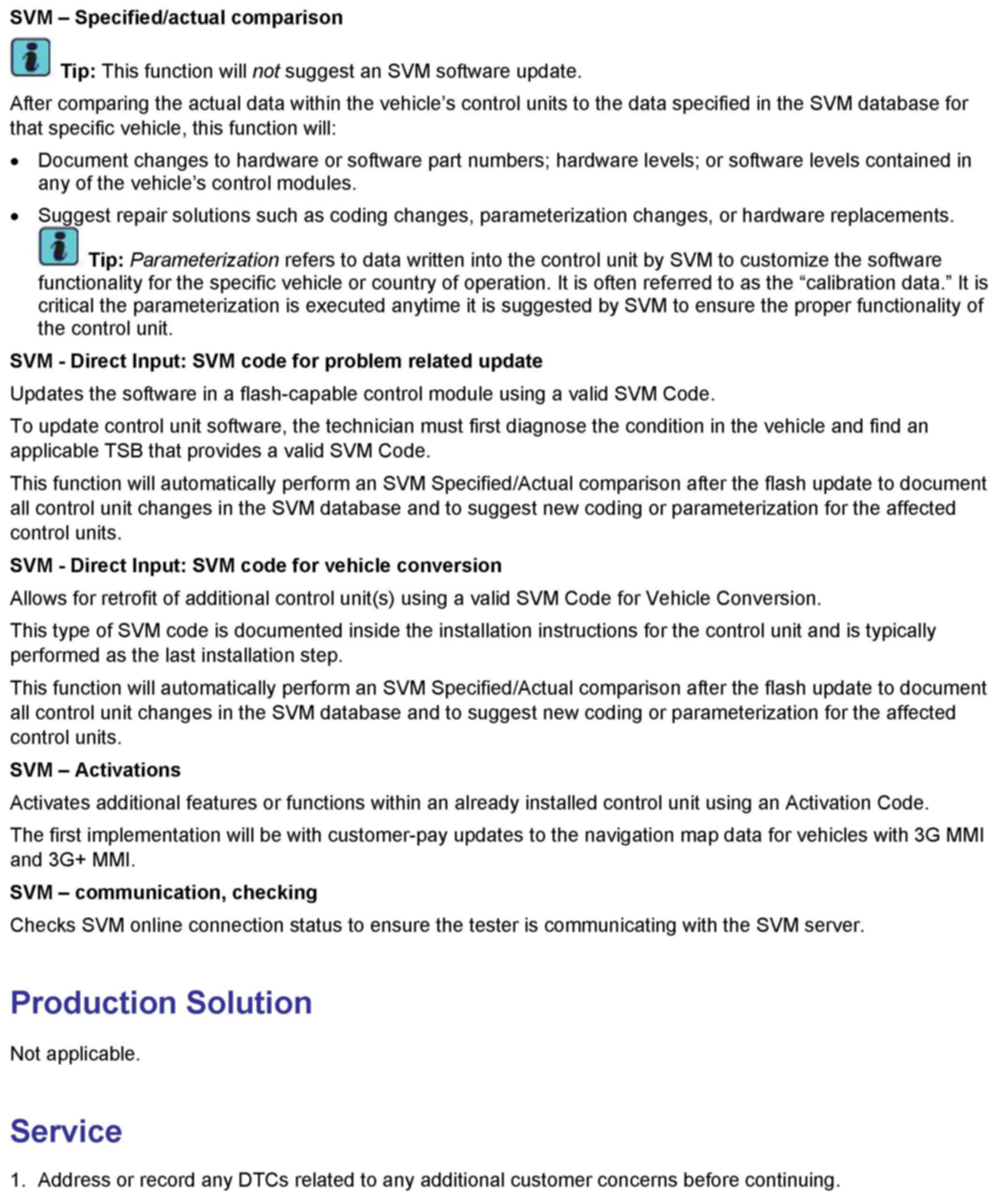

Attachment - TSB 2011732 00 Software Version Management (SUM), operating instructions.
