MMI Overview, From 11.2008

MMI Overview, from 11.2008

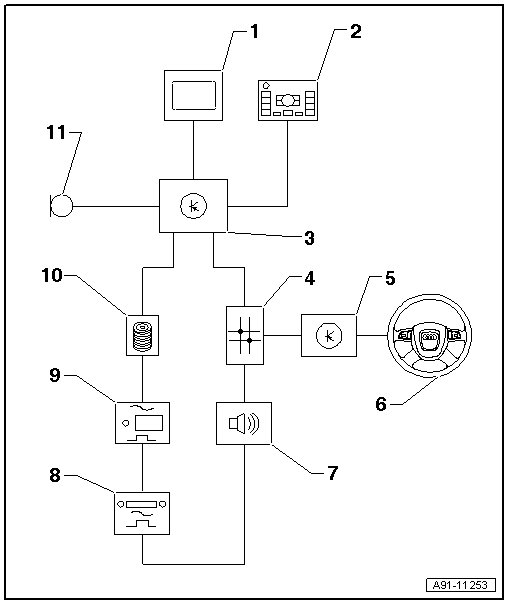

1 Front Information Display Control Head (J685)

• In the center of the instrument panel.

2 Multimedia Control Head (E380)

• In the center console.

3 Information Electronics Control Module 1 (J794)

• In the instrument panel.

• Connector assignment from 11.2008, refer to => [ MMI Minimum Equipment Connectors, from 11.2008 ] MMI Minimum Equipment Connectors, From 11.2008 or => [ MMI Maximum Equipment Connectors, from 11.2008 ] MMI Maximum Equipment Connectors, From 11.2008.

• Removing and installing, refer to => [ Information Electronics Control Module 1 (J794) ] Information Electronics Control Module 1 (J794).

4 Data Bus On Board Diagnostic Interface (J533)

• Behind the glove compartment on the left side.

5 Steering Column Electronic Systems Control Module (J527)

• On steering column at steering column switches.

6 Multifunction Steering Wheel

• Buttons, removing and installing, refer to => [ Multifunction Buttons, through MY 2011 ] Multifunction Buttons, Through MY 2011.

7 Digital Sound System Control Module (J525)

• Behind the luggage compartment left side trim.

8 Radio (R)

• Behind the luggage compartment left side trim.

9 TV Tuner (R78)

• Not available in the NAR market

10 CD Changer (R41)

• In the glove compartment.

11 Microphone Unit in Front Roof Module (R164)

• Overview, refer to => [ Microphone Unit in Front Roof Module Overview, from 11.2008 ] Microphone Unit In Front Roof Module Overview, From 11.2008.
