Bench Seat With Center Storage Compartment Overview

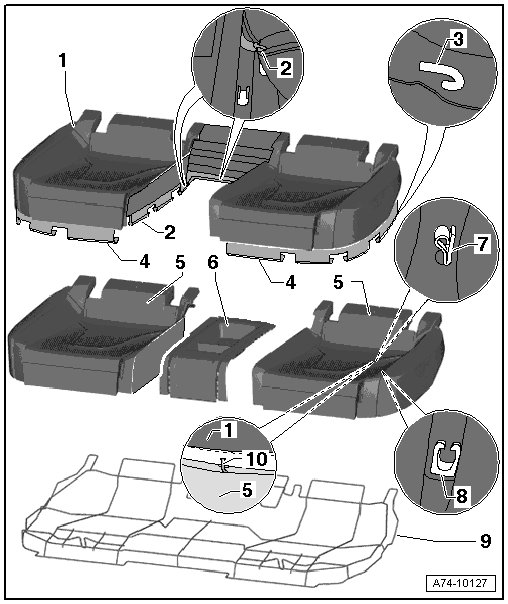

Bench Seat with Center Storage Compartment Overview






1 Cover

• Removing and installing, refer to => [ Bench Seat with Center Storage Compartment, Cover and Padding ] Bench Seat With Center Storage Compartment, Cover and Padding

• Separating cover from upholstery, refer to => [ Bench Seat with Center Storage Compartment, Cover and Padding, Separating ] Bench Seat With Center Storage Compartment, Cover and Padding, Separating

2 Molding

• Sewn into cover

• For engaging the cover in the rear and side channel at the center armrest

3 Contour Wire

• Pushed into the cover

4 Molding

• Sewn into cover

• For engaging the cover in the seat frame

5 Left/Right Upholstery

• Removing and installing, refer to => [ Bench Seat with Center Storage Compartment, Cover and Padding ] Bench Seat With Center Storage Compartment, Cover and Padding

• Separating cover from upholstery, refer to => [ Bench Seat with Center Storage Compartment, Cover and Padding, Separating ] Bench Seat With Center Storage Compartment, Cover and Padding, Separating

6 Center Storage Compartment

• Separating the cover from the center storage compartment:

• Right cover, refer to => [ Bench Seat with Center Storage Compartment, Cover and Padding ] Bench Seat With Center Storage Compartment, Cover and Padding

• Left cover, refer to => [ Bench Seat with Center Storage Compartment, Cover and Padding ] Bench Seat With Center Storage Compartment, Cover and Padding

• Removing and installing, refer to => [ Center Storage Compartment ] Center Storage Compartment

7 Clip

• In foam in upholstery

• Only with fabric covers

8 Clip

• In foam in upholstery

9 Seat Frame

10 Cushion Clamp

• Only with leather covers

• For securing cover to upholstery

• Always replace if removed

• Install in same location as before removal
