Lumbar Support Adjustment Switch

Lumbar Support Adjustment Switch

Removing






- Remove the bucket seat. Refer to => [ Front Bucket Seat ] Front Bucket Seat.

- Secure the bucket front seat on the fixture for seat repair (VAS 6136). Refer to => [ Front Seat, Installing on the ] Front Seat, Installing on the Fixture For Seat Repair (VAS 6136).

- Remove the trim on the sill side. Refer to => [ Trim, Sill Side ] Trim, Sill Side.

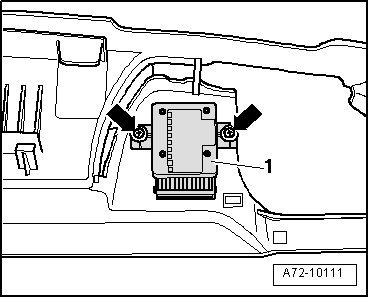

- Remove the bolts - arrows -.

- Remove lumbar support adjustment switch - 1 -.

Installing

Install in reverse order of removal.

For the correct tightening specifications, refer to => [ Sill and Tunnel Side Trim Overview ] Sill and Tunnel Side Trim Overview.
