Instrument Panel Vent Illumination

Instrument Panel Vent Illumination

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing





- Remove the affected instrument panel vent.

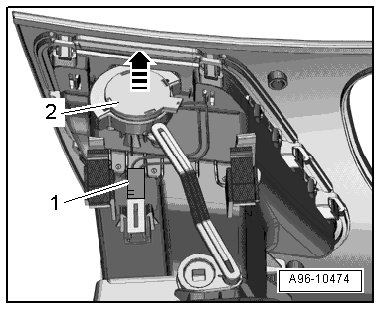

- Release the retaining clips and remove the electrical connector - 1 - on the instrument panel vent.

- Pry the LED housing - 2 - upward and off using a small screwdriver - arrow -.

- Remove the instrument panel vent LED.

Installing

Install in reverse order of removal, observing the following:

- Install the instrument panel vent.
