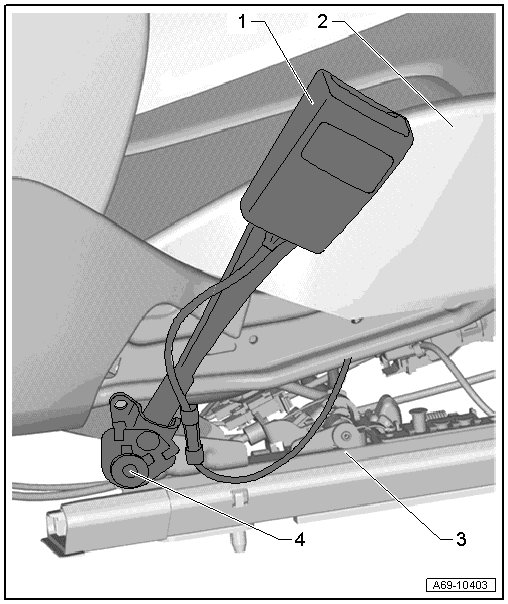

Front Belt Anchor Overview

Front Belt Anchor Overview






1 Front Seat Belt

• Driver side: with driver seat belt switch (E24)

• Front passenger side: With front passenger seat belt switch (E25) (depending on the country; belt latch version not illustrated)

• Removing and installing, refer to => [ Front Belt Latch ] Front Belt Latch

• Installation position => [ Belt latch installation position ] Front Belt Latch

2 Front Seat

3 Seat Frame

4 Bolt

• 33 Nm

• Replace
