The maximum possible care and cleanliness and proper tools are essential to ensure satisfactory and successful transmission repairs. The usual basic safety precautions also apply when carrying out vehicle repairs.
A number of generally applicable instructions for individual repair procedures, which are otherwise mentioned at various points in the Repair Manual, are summarized here under the topic components.
Components
Transmission
• Allocate bolts and other components according to transmission code. Refer to the electronic parts catalog ETKA.
• Thoroughly clean all connections and the surrounding area before disconnecting.
• When replacing or repairing a manual transmission, check the fluid level and fill if necessary.
• Use the transmission code to determine capacities and specifications.
Sealant
• Thoroughly clean housing joint surfaces before applying sealing compounds.
• Apply sealing paste (AMV 188 001 02) evenly and not too thick.
• Do not allow sealing compound to enter ventilation openings.
O-Rings, Shaft Seals, Seals
• O-rings, shaft seals and seals must be replaced.
• After removing gaskets and seals, always inspect the contact surfaces at housing or shaft for burrs resulting from removal, or for other signs of damage.
• Thoroughly clean housing joint surfaces before assembling.
• Before installing the shaft seals, lightly oil the outer circumference and fill the space between the sealing lips - arrow - halfway with sealing grease (G 052 128 A1).
• The open side of the shaft seals point toward the fluid to be sealed in.
• Press in new shaft seal, so that the sealing lip does not run on the same point as the sealing lip of the old shaft seal (use insertion depth tolerances).
• Lightly lubricate O-rings before installing to prevent them from being crushed when inserting.
• After replacing seals and sealing rings, check transmission fluid level and top off if necessary.
Fasteners

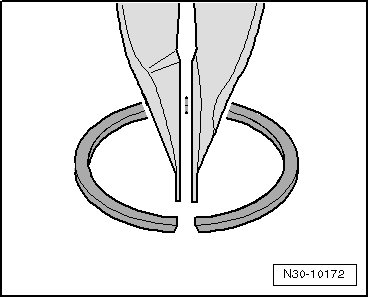

• Do not stretch the circlips.
• Installed position for some of the circlips: the circlip is narrower at the top. This makes it easier for the pliers to grab the circlip when removing and installing it.
• Always replace damaged or over-stretched circlips.
• Circlips must locate properly in the groove.

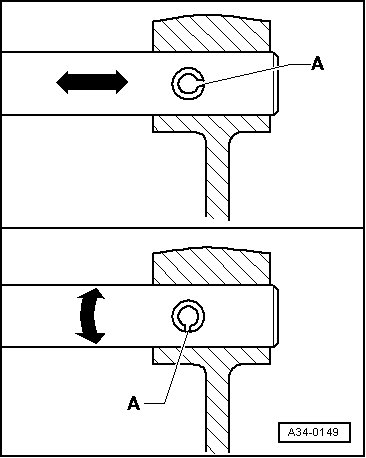

• Replace spring pins. Installed position: the slit - A - should be in line with the line of force- arrow -.

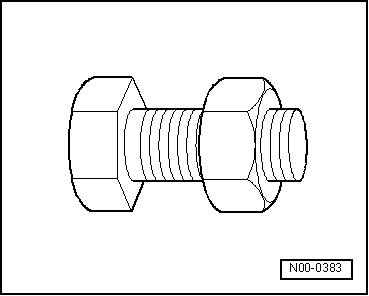

Bolts and nuts
• Loosen bolts and nuts in reverse of tightening sequence.
• Nuts and bolts which secure covers and housings should be loosened and tightened diagonally and in steps if no tightening sequence is specified.
• Delicate parts must not be cross-threaded. Loosen and tighten in stages in a diagonal sequence.
• The tightening specifications stated apply to non-oiled nuts and bolts.
• Replace self-locking bolts and nuts.
• Clean threads of bolts that were applied with locking fluid using a wire brush. Apply locking fluid (AMV 185 101 A1) before reinstalling.
• Threaded holes into which self-locking bolts or bolts coated with locking fluid are screwed, must be cleaned (for example, with a thread tap). Otherwise there is a risk that the bolts will shear the next time they are removed.
Adjusting Shims

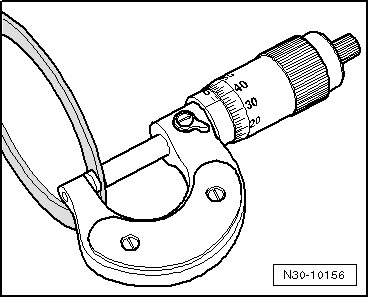

• Use a micrometer to measure the shims at several points. Tolerance variations make it possible to find the exact shim thickness required.
• Check for burrs and damage.
• Do not install shims which are damaged or not in perfect condition.
Mount
• Set needle bearings, ball sleeves and roller sleeves with the inscribed side (greater thickness) facing toward drift.
• Insert all the bearings in transmission with gear oil.
• Heat inner races of tapered roller bearings to approximately 100 °C (212 °F) with the inductive heat unit (VAS 6414) before installing. Press on to the stop when installing, so there is no axial clearance.
• Warm inner race for needle and roller bearings to 130 °C (266 °F) max.
• Do not interchange inner and outer bearing races with those from other bearings of the same size, bearings are paired.
• Tapered roller bearings installed on a shaft must be replaced as a set and use same make of bearings.
Gears, synchronizer hubs, selector gear inner races
• To install, heat gear wheel inner race to approximately 100 °C (212 °F) with (VAS 6414).
• Heat the gear wheels and synchronizer hubs to approximately 100 °C (212 °F) with the (VAS 6414) before installing. Press on to the stop when installing, so there is no axial clearance.
• Observe installation position.
Selector Gears
• After assembly, check selector gears of 1st through 6th gear for axial play of 0.15 to 0.50 mm and ease of movement.
Input Shaft

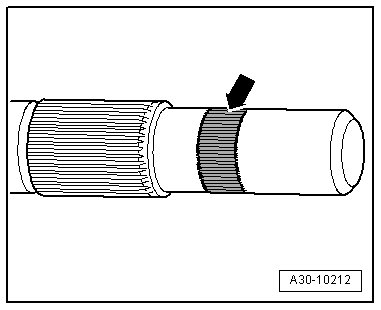

• If the surface of the input shaft is visibly damaged near the needle bearing in the dual mass flywheel - arrow -, then replace both the input shaft and the needle bearing. Refer to => [ Dual Mass Flywheel Needle Bearing, Sachs and LuK ] Dual Mass Flywheel Needle Bearing, Sachs and LuK.
• Check the input shaft near the bearing in the drive plate - arrow - for scoring. Replace the needle bearing in the drive plate if necessary.
Synchronizer Rings
• Do not interchange. When reusing synchronizer rings, always install to the same gear wheel.
• Check for wear and replace if necessary.
• Coat with gear oil before installing.
Check the Synchronizer Rings Coated with Molybdenum Grease.
• Clean the synchronizer ring. There must not be any oil on the friction surface.
• The friction surface of a intact molybdenum coated synchronizer ring looks graphite gray and slightly porous.

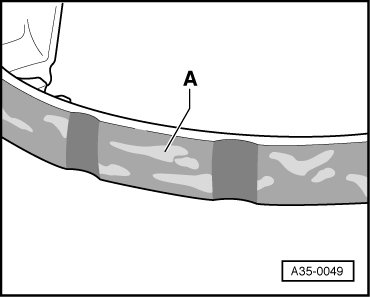

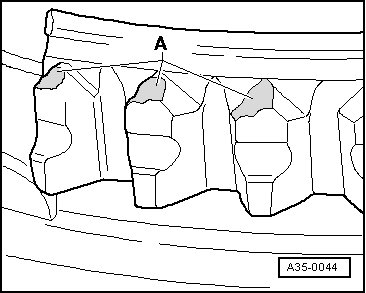

• Replace the synchronizer ring if the friction surface has shiny spots - A - or if the brass color base starts to show through.

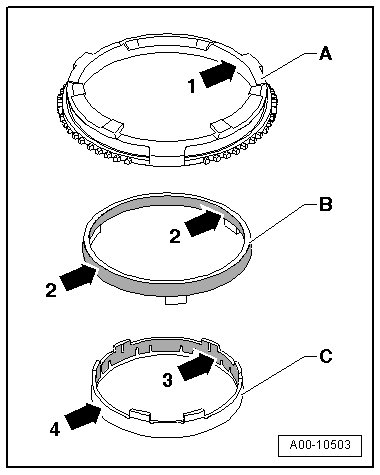

Synchronizer Rings for 1st and 2nd Gears:
• Check coated friction surfaces - arrows 2 - from intermediate ring - B - for damage (flat areas, disintegrating areas or carbon layer).
• Check the inner friction surface - arrow 1 - of the synchronizer ring - A - and the outer friction surface - arrow 4 - of the inner race - C - for grooves and scoring.
• On inner races - C - with coated friction surfaces - arrow 3 -, check coating for damage (disintegrating carbon layer).
Damage on the Selector Gears and Locking Collars
• Damage to the synchronizer ring or gear wheel:
A Worn clutch spline camber on the synchronizer ring or gear wheel
• Compare: synchronizer ring or gear wheel not damaged:

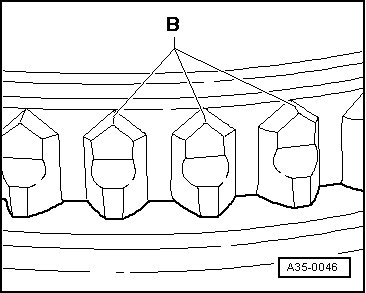

B Undamaged clutch spline camber on the synchronizer ring or gear wheel

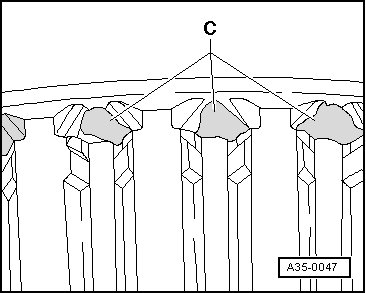

• Picture of damage on the locking collar:
C Worn longitudinal inner spline camber and the locking collar
• Comparison: locking collar not damaged:

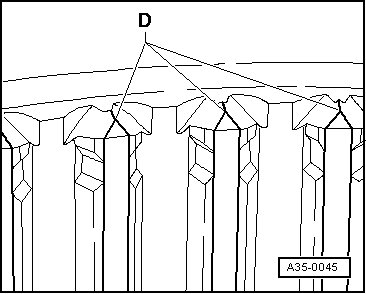

D Undamaged longitudinal inner spline camber and the locking collar
• Synchronizer rings coated with carbon must be replaced together with the locking collar. The gear wheels must be replaced as well depending on the amount of wear.
