Connectors, External Audio Source AUX IN Connection

External Audio Source AUX IN Connection

• Unlisted connector terminals are not assigned.

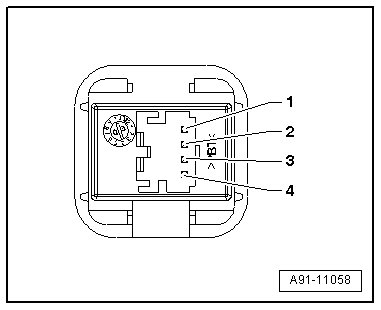

4-pin connector





All pins are connected to the radio (R).

1. LF ground

2. LF left

3. LF right

4. LF ground
