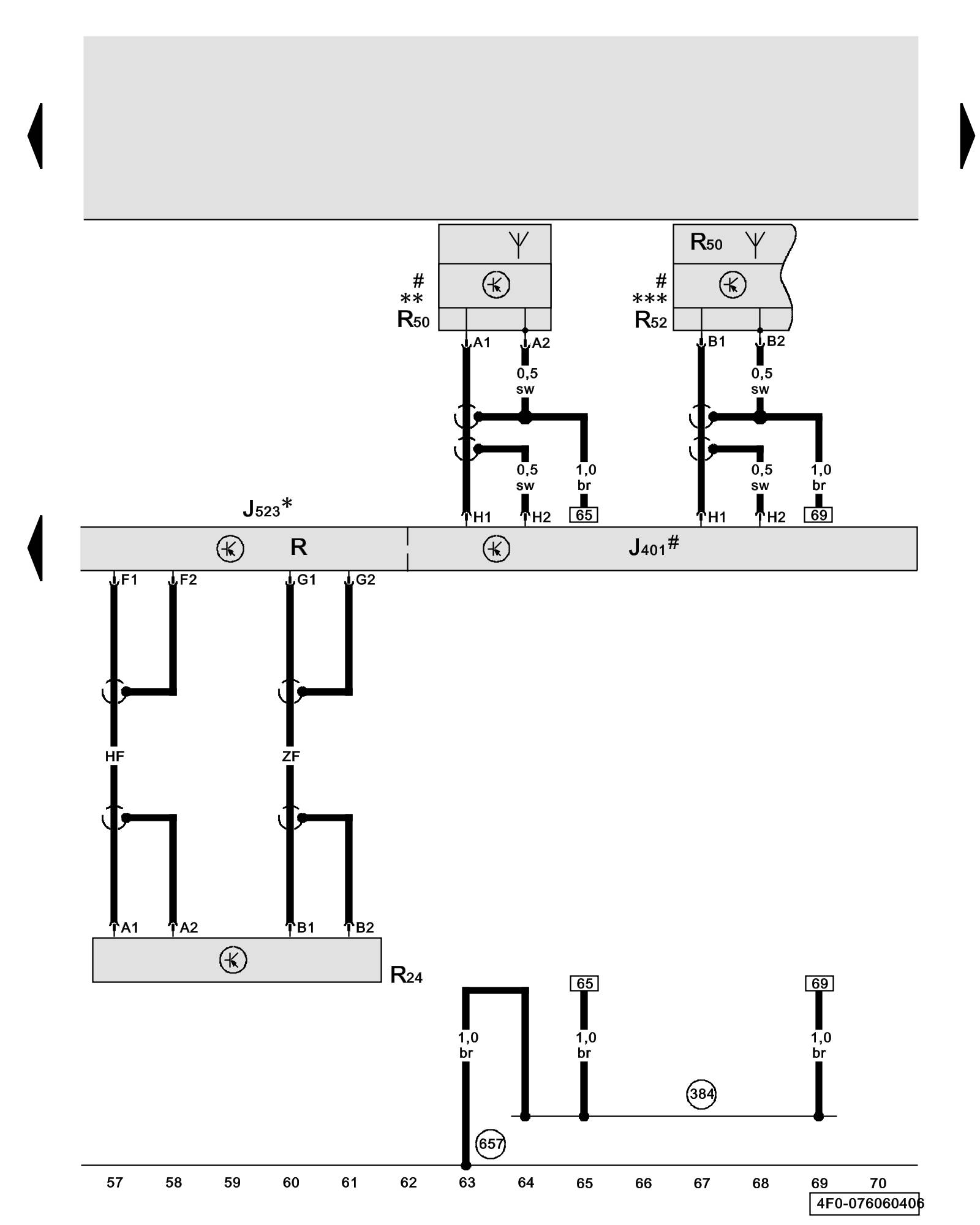

Diagram 76/6 (Tracks 57-70)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front Information Display Control Head Control Module, Antenna Amplifier, Antenna for Radio, Telephone, Navigation System, Navigation System Antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J401 - Navigation System Control Module with CD Drive Overview of Control Modules

J523 - Front Information Display Control Head Control Module Overview of Control Modules

R - Radio Overview of Control Modules

R24 - Antenna Amplifier Locations

R50 - Navigation System Antenna Locations

R52 - Antenna for Radio, Telephone, Navigation System Locations

(384) - Ground Connection 19 (in main wiring harness)

(657) - Ground Connection 1 (left, near rear window) Overview of Ground Connections in Interior of Vehicle

* - In glove compartment

** - Models without telephone, under rear roof trim

*** - Models with telephone, roof antenna

# - MMI basic plus Navigation
