Center Armrest Base Trim

Center Armrest Base Trim

Removing





- Remove front center armrest. Refer to => [ Front Center Armrest ] Front Center Armrest.

- Remove front center armrest storage compartment. Refer to => [ Front Center Armrest Storage Compartment ] Front Center Armrest Storage Compartment.

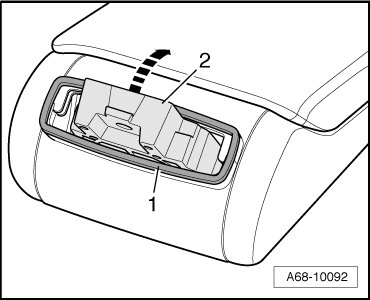

- Fold center armrest base - 2 - up to stop - arrow -.

- Pry seal - 1 - off with a small screwdriver.

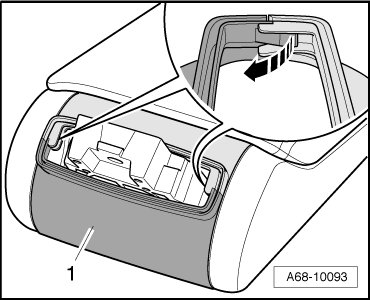

- Unclip front center armrest base trim - 1 - with a small screwdriver - arrow - and remove.





- Fold center armrest base - 1 - down to stop - arrow -.





- Open front center armrest.

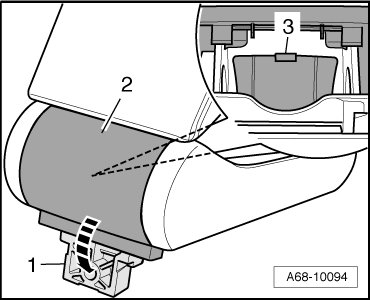

- Disengage retainer tab - 3 - on rear center armrest food trim - 2 - from front center armrest frame.

- Remove rear center armrest base trim.

Installation

Installation is reverse of removal, but note the following:

- Ensure trim engages completely.

- Install front center armrest. Refer to => [ Front Center Armrest ] Front Center Armrest.

- Install front center armrest storage compartment. Refer to => [ Front Center Armrest Storage Compartment ] Front Center Armrest Storage Compartment.
