Telephone Mount or Cell Phone Mount Lift

Telephone Mount or Cell Phone Mount Lift

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)





Removing





- Open front center armrest.

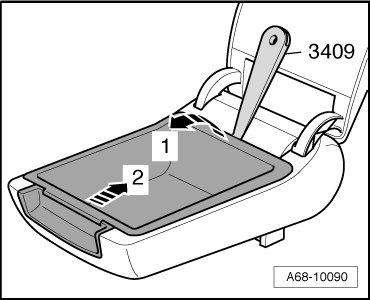

- Remove storage compartment from front center armrest frame with (3409) on rear edge - arrow 1 -.

- Lift storage compartment with front center armrest frame grip in - direction of arrow 2 -.

Vehicles with mount lift for cell phones:

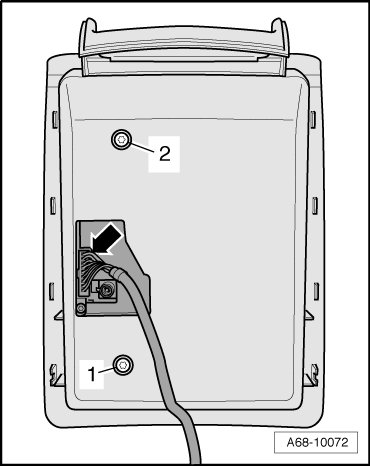

- Disconnect electrical connector on underside of storage compartment - arrow -.

- Remove screws - 1 - and - 2 - on underside of storage compartment.

- Remove storage compartment and cell phone mount lift.

Vehicles with telephone mount:

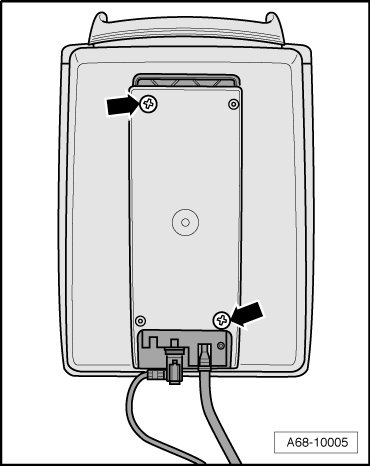

- Remove screws - arrows - on underside of storage compartment.

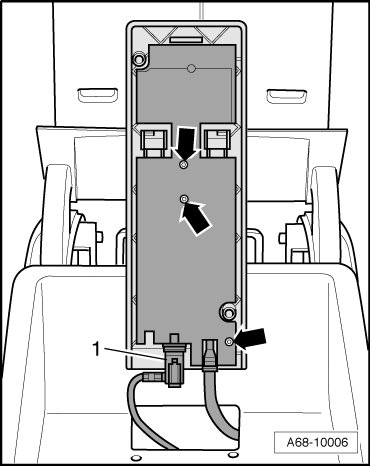

- Disconnect telephone antenna connection - 1 -.





- Remove telephone circuit board - arrows -.

- Disconnect electrical connector and remove telephone mount.

Installation

To install, perform the steps used in removal in reverse order.

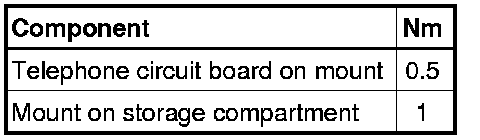

Tightening Specifications
