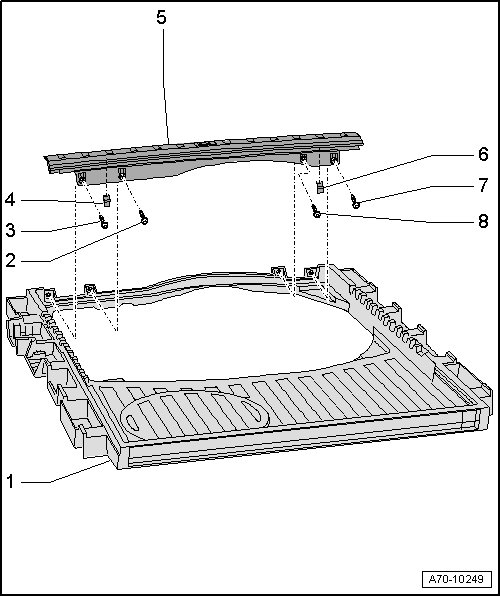

Rear Cross Panel Trim Component Overview

Rear Cross Panel Trim Component Overview





1 Cargo tray

2 3.5 Nm

3 3.5 Nm

4 Spring clamp

• Replace if damaged

5 Rear cross panel trim

• Removing and Installing => [ Rear Cross Panel Trim ] Trim, Avant

6 Spring clamp

• Replace if damaged

7 3.5 Nm

8 3.5 Nm
