Headrest Cover and Upholstery, With Locking Mechanism






Headrest Cover and Upholstery, with Locking Mechanism

Removing





- Remove headrest with insertion lock => [ Headrests with Locking Mechanism ] Power Front Memory Seats.

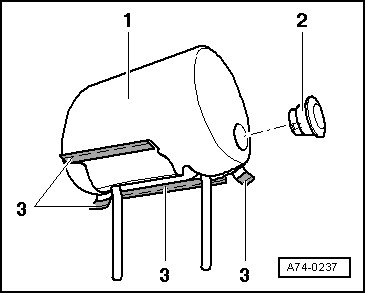

- Pry fastening strips - 3 - (Qty. 4) out with a screwdriver.

- Remove button - 2 -.

- Remove cover and upholstery - 1 -.

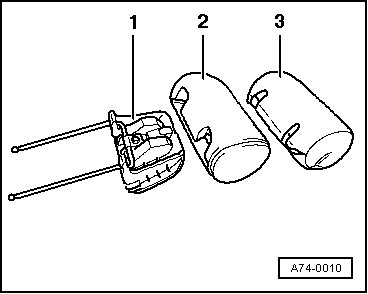

- Remove upholstery - 2 - from cover - 3 -.





Installing

- Insert the cushion - 2 - into the cover - 3 -.

- Insert headrest mount - 1 - in upholstery with cover.

- Press fastening strips firmly into guide channel (check by pulling).
