Headrest Cover and Padding with Locking Mechanism

Headrest Cover and Padding with Locking Mechanism

Removing





- Remove the headrests. Refer to => [ Headrests with Locking Mechanism ] Standard Front Seats.

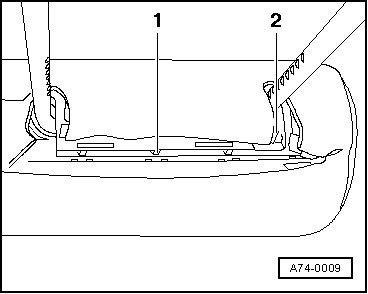

- Disengage fastening strips - 2 - by prying them out of guide channel - 1 - with a screwdriver.

- Lift cover over button collar - 3 - using a screwdriver.





- Remove the headrest mount - 1 - from the cushion and cover - 2 -. Begin on side opposite to knob - 3 -.

- Remove the padding - 2 - from the cover - 3 -.





Installing

- Insert padding - 2 - in cover - 3 - and make sure it fits properly.





- Insert headrest mount - 1 - in upholstery with cover - 2 -. Begin on side with knob - 3 -.





- Press fastening strips firmly into guide channel (check by pulling).
