Seat Pan Cover and Upholstery, Sport Seat

Seat Pan Cover and Upholstery, Sport Seat

Special tools, testers and auxiliary items required

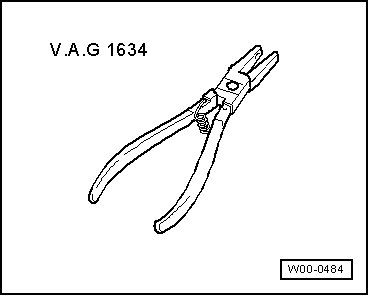

• Upholstery clip pliers (V.A.G 1634)

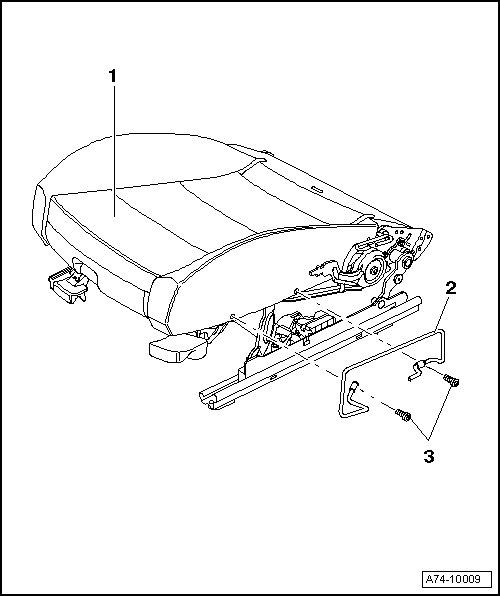

1 Cover

• Removing

- Remove the seat. Refer to => [ Standard Front Seat ] Standard Front Seats.

- Remove the backrest. Refer to => [ Standard Front Seat Backrest ] Standard Front Seats.

- Remove the screws - 3 - (2x).

- Remove bracket - 2 -.

2 Retainer

3 Screws

Quantity: 2

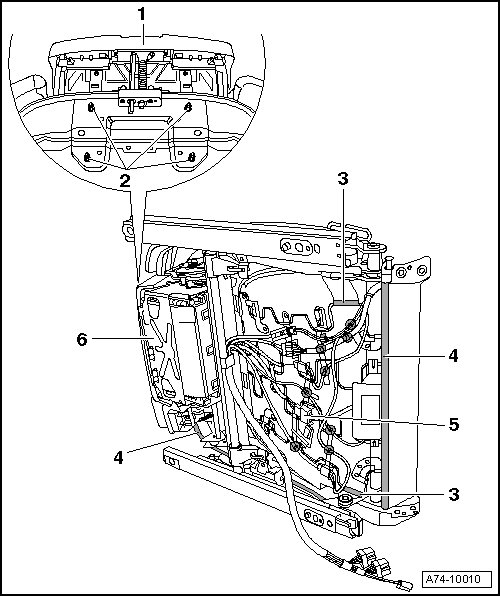

1 Seat Cushion Extension

• Removing

- Remove drawer - 6 -. Refer to => [ Drawer, through 06.2006 ] Standard Front Seats.

- Pull out seat cushion extension - 1 - completely.

- Remove nuts - 2 - (4x).

- Disconnect connector for seat heater - 5 -.

- Disengage tabs - 3 - (quantity: 2).

- Pry out grip channels - 4 - all around.

- Remove cover and upholstery.

• Installing

To install, perform the steps used in removal in reverse order.

2 Nuts

Quantity: 4

3 Tabs

Quantity: 2

4 Peripheral Fastening Strips

5 Seat Heating Connector

6 Drawer

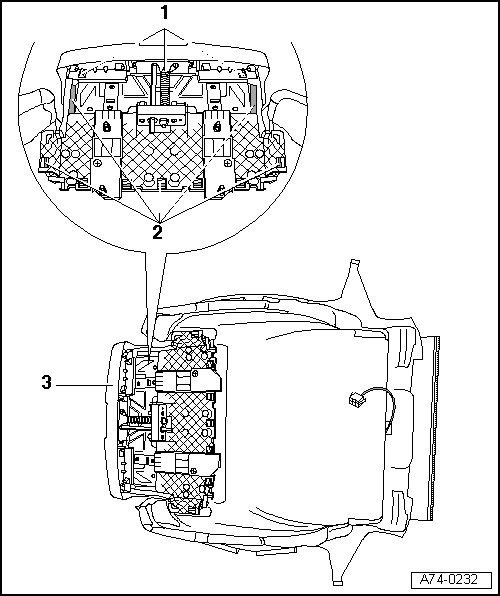

Seat Cushion Extension, Separating from Cover and Upholstery





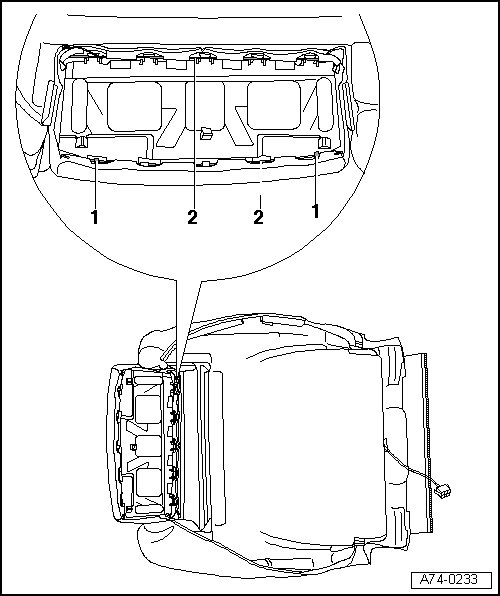

1 Clips

Quantity: 3

2 Fastening strips

Quantity: 5

3 Seat Cushion Extension

- Pry out grip channels - 2 - (quantity: 5).

- Pry out clips - 1 - (quantity: 3).

- Remove seat cushion extension - 3 -.

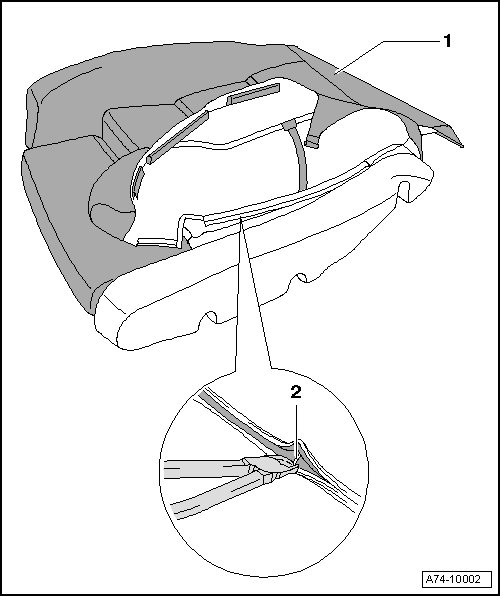

Cover, Separating from Upholstery





1 Cable Ties

Quantity: 2

2 Rods

Quantity: 2

- Loosen cable ties - 1 - (quantity: 2).

- Pry out rods - 2 - (quantity: 2).





1 Cover

• Removing

- Cut the upholstery clips - 2 -.

- Remove cover - 1 -.

• Installing

Installation is in reverse order of removal. Be sure to note the following:

- When installing new upholstery clips, use (V.A.G 1634).

2 Upholstery Clips
