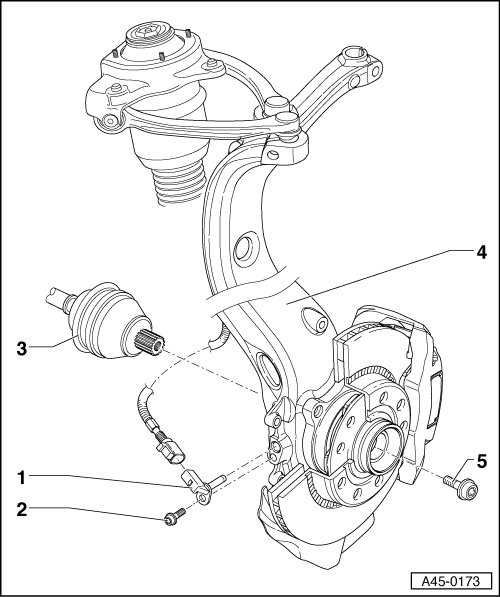

ABS Components, Front Axle

ABS Components, Front Axle





1 - ABS wheel speed sensor

• Before inserting sensor, clean inner surface of mounting hole and coat with Polycarbamide Grease (G 000 650)

• removing and installing, refer to => [ Speed Sensor, Front Axle ] Description and Operation

2 - Bolt

• 18 Nm

3 - Driveshaft

4 - Wheel hub with wheel bearing

5 - Bolt

• Replace
