Diagram 90/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

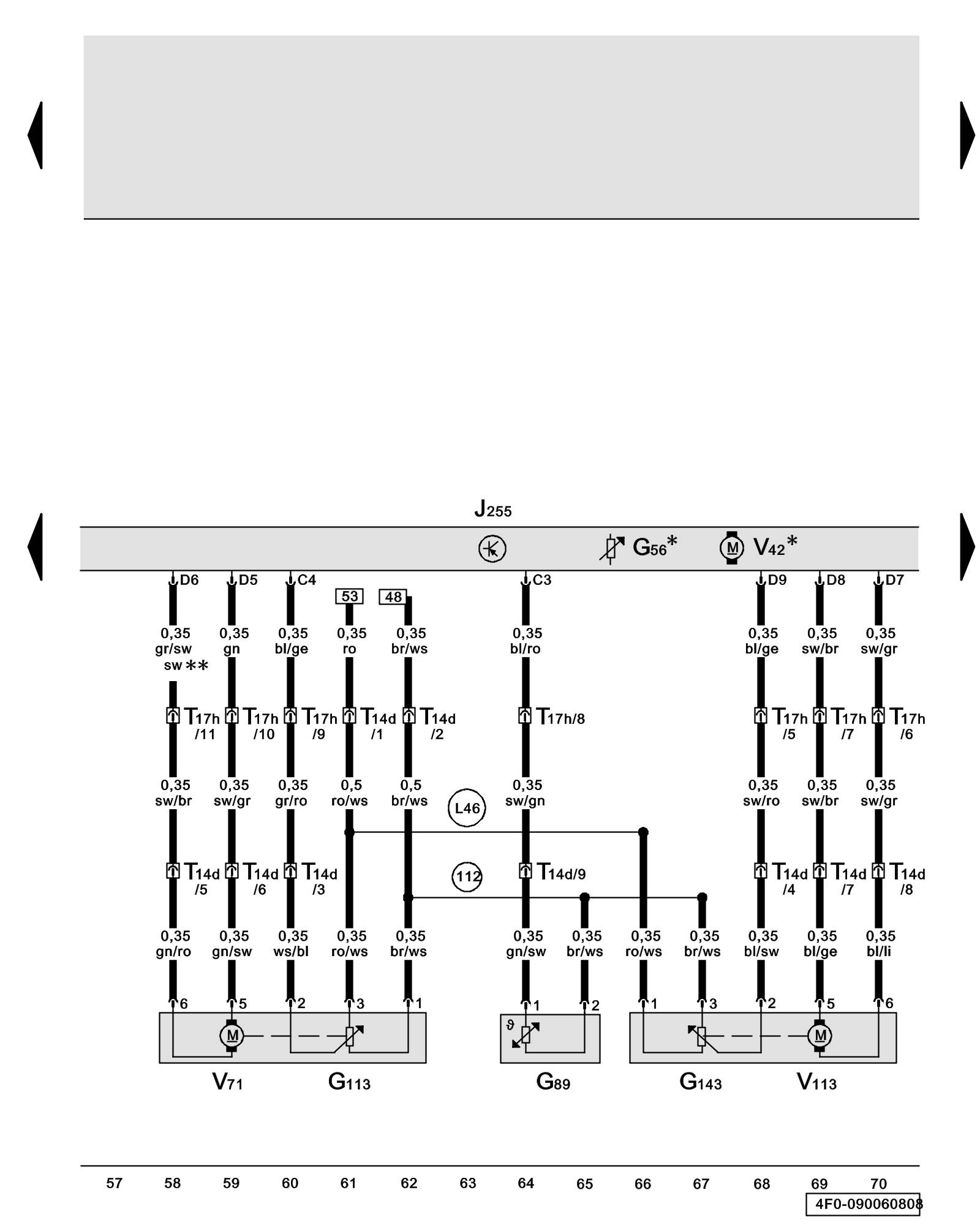

Climatronic Control Module, Back Pressure Flap Motor, Recirculation Flap Motor, Fresh Air Intake Duct Temperature Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G56 - Instrument Panel Interior Temperature Sensor Components Inside Passenger Compartment

G89 - Fresh Air Intake Duct Temperature Sensor Components Outside Passenger Compartment

G113 - Back Pressure Flap Motor Position Sensor Components Outside Passenger Compartment

G143 - Recirculation Flap Motor Position Sensor Components Outside Passenger Compartment

J255 - Climatronic Control Module Components Inside Passenger Compartment

T10a - 10-Pin Connector, purple, connector station left electronics box Overview of Connector Stations and Connectors

T14d - 14-Pin Connector, black, in plenum chamber, right

T17h - 17-Pin Connector, orange, connector station electronics box in left plenum chamber Overview of Connector Stations and Connectors

V42 - Interior Temperature Sensor Fan Components Inside Passenger Compartment

V71 - Air Flow Flap Motor Components Outside Passenger Compartment

V113 - Recirculation Flap Motor Components Outside Passenger Compartment

(112) - Ground Connection 2 (in A/C wiring harness)

(L46) - Connection (5 Volt) (in Climatronic system wiring harness)

* - Comfort only

** - Phased-in modification

Previous Diagram 90/5 (Tracks 43-56)

Next Diagram 90/7 (Tracks 71-84)
