Diagram 64/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

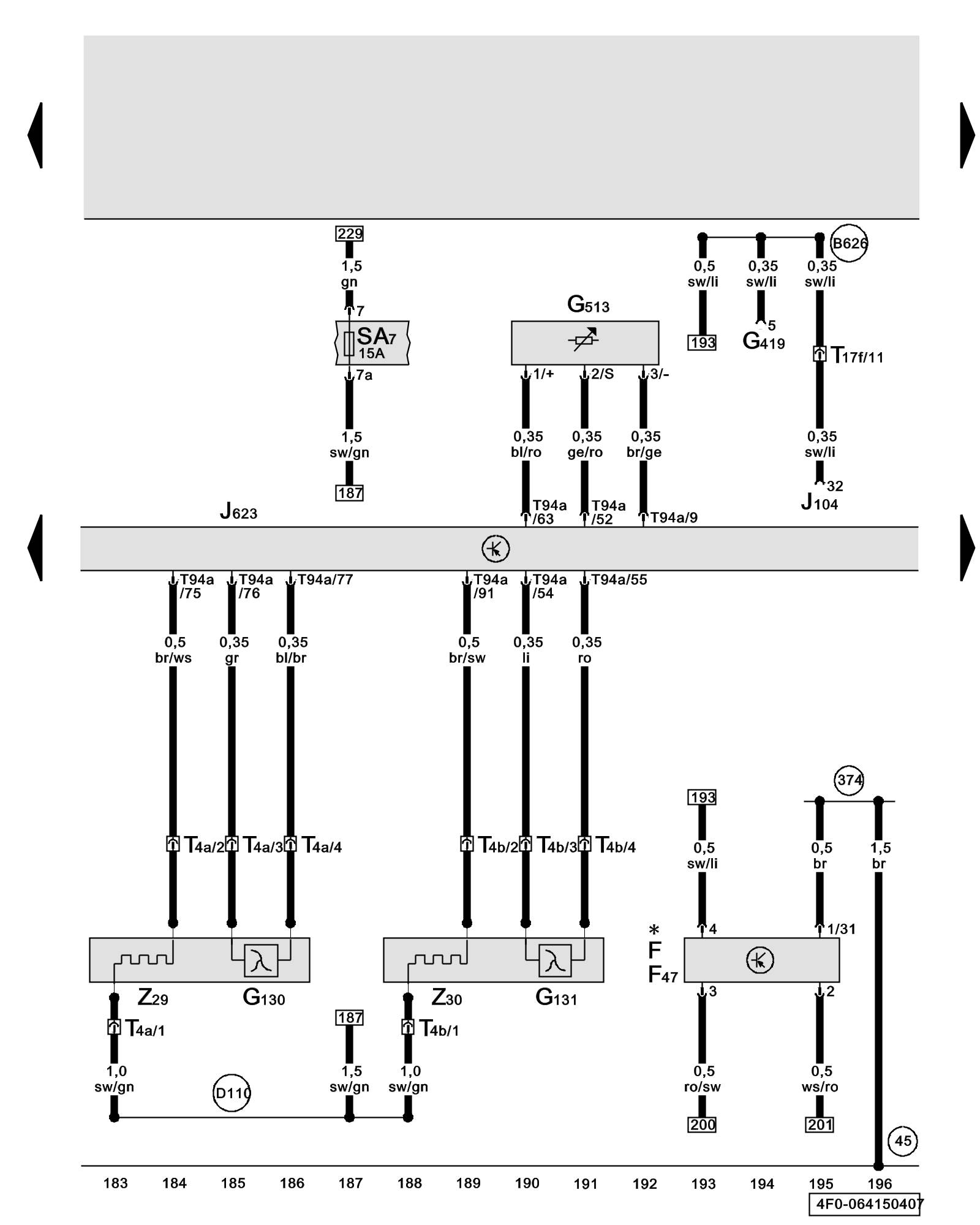

Engine Control Module (ECM), Intake Manifold Tuning (IMT) Valve Position Sensor, Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC), Brake Pedal Switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations

F47 - Brake Pedal Switch Locations

G130 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Locations

G131 - Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) Locations

G419 - ESP Sensor Unit Locations

G513 - Intake Manifold Tuning (IMT) Valve Position Sensor 3.2L CALA / BKH Overviews

J104 - ABS Control Module Locations

J623 - Engine Control Module (ECM) Overview of Control Modules

SA7 - Fuse 7 (on fuse panel A) Overview of Fuses

T4a - 4-Pin Connector, black, oxygen sensor (O2S) 1 behind three way catalytic converter (TWC)

T4b - 4-Pin Connector, brown, oxygen sensor (O2S) 2 behind three way catalytic converter (TWC)

T17f - 17-Pin Connector, green, connector station A-pillar, left Overview of Connector Stations and Connectors

T94a - 94-Pin Connector, black (Connector B), on engine control module (ECM)

Z29 - Oxygen Sensor (O2S) Heater 1 (behind Three Way Catalytic Converter (TWC)

Z30 - Oxygen Sensor (O2S) Heater 2 (behind Three Way Catalytic Converter (TWC)

(45) - Ground Connection (behind instrument panel, center) Overview of Ground Connections in Interior of Vehicle

(374) - Ground Connection 9 (in main wiring harness)

(B626) - Plus Connection 2 (15) (in main wiring harness)

(D110) - Connection 8 (in engine compartment wiring harness)

* - from June 2007

Previous Diagram 64/14 (Tracks 169-182)

Next Diagram 64/16 (Tracks 197-210)
