Rear Shelf With Sun Shade
Rear Shelf with Sun Shade
Special tools, testers and auxiliary items required
• Trim removal wedge (3409)
• torque wrench (V.A.G 1783)
1 Rear Shelf with Sun Shade
• Removing
- Drive sun shade - 4 - in.
- Remove roof panel trim. Refer to => [ Roof Panel Trim ] Roof Panel Trim.
- Remove D-pillar trim on left and right => [ D-Pillar Trim ] D-Pillar Trim.
Vehicles with foldable rear seat backrests
- Fold rear seat backrest forward.
Vehicles with fixed rear seat backrests
- Remove the rear bench seat. Refer to => [ Bench Seat ] Bench Seat.
- Remove rear seat backrest. Refer to => [ Fixed Rear Seat Backrest ] Fixed Rear Seat Backrest.
- Remove right seat belt buckle with retainer.
Procedure for all vehicles
- Remove screws - 5 - (quantity: 3).
- Push rear shelf - 1 - forward and unclip clamps - 10 - (quantity: 4) from rear shelf crossmember - 6 -.
- Pull rear shelf - 1 - with retainers with pins - 8 - (quantity: 4) out of carrier below rear window - 7 -.
- Disconnect the connector - 9 -.
Vehicles with fixed rear seat backrests
- Unclip rear center belt guide from rear shelf - 1 -. Refer to => [ Center Rear Belt Guide ] Rear Shelf Without Sun Shade.
- Guide belt webbing with rear center belt guide through cut-out - 3 - in rear shelf - 1 -.
Procedure for all vehicles
- Remove rear shelf - 1 -.
• Installing
- Check clamps - 10 - (quantity: 4) for damage and deformity.
Replace damaged or deformed clamps.
- Before installing rear shelf - 1 -, make sure clamps - 10 - (quantity: 4) are positioned correctly.
Vehicles with fixed rear seat backrests
- Guide belt webbing with rear center belt guide through cut-out - 3 - in rear shelf - 1 -.
- Clip rear center belt guide into rear shelf - 1 -. Refer to => [ Center Rear Belt Guide ] Rear Shelf Without Sun Shade.
Ensure belt webbing is not twisted.
Procedure for all vehicles
- Place rear shelf - 1 - on crossmember - 6 -.
- Connect electrical connector - 9 -.
- Push rear shelf - 1 - back to stop.
- Ensure retainer pins - 8 - (quantity: 4) are inserted in carrier cut-outs below rear window - 7 -.
- Clip rear shelf - 1 - onto crossmember - 6 - with clamps - 10 - (quantity: 4).
- Install screws - 5 - (quantity: 3) and tighten to the specification.
Ensure screw heads are located in narrow part of keyhole-shaped cut-outs.
Vehicles with fixed rear seat backrests
- Install right seat belt buckle with retainer.
- Install rear seat backrest. Refer to => [ Fixed Rear Seat Backrest ] Fixed Rear Seat Backrest.
- Install the rear bench seat. Refer to => [ Bench Seat ] Bench Seat.
Vehicles with foldable rear seat backrests
- Fold rear seat backrest back.
Procedure for all vehicles
- Install D-pillar trim on left and right. Refer to => [ D-Pillar Trim ] D-Pillar Trim.
- Install roof panel trim. Refer to => [ Roof Panel Trim ] Roof Panel Trim.
- Check sun shade function.

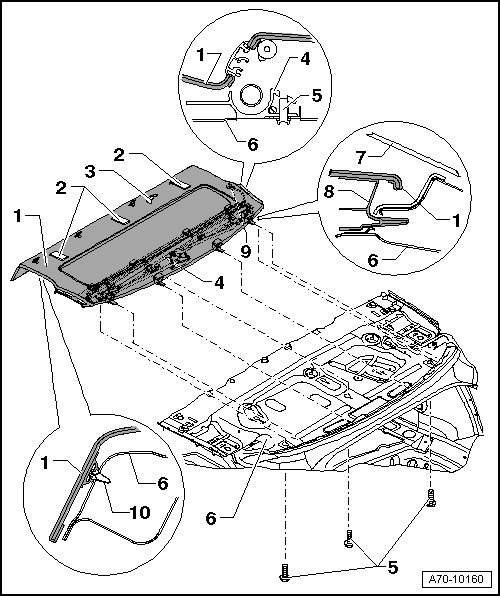

2 Child Seat Anchor
Quantity: 3
• USA and Canada only
• Removing and installing, refer to => [ Child Seat Anchor ] Child Seat Anchor
• Child seat anchor cut-outs in rear shelf only on USA, Canada vehicles
3 Belt Guide Cut-Out
• Only on vehicles with fixed rear seat backrests
4 Electric Sun Shade
• Removing and installing, refer to => [ (Item 1) Rear Shelf with Sun Shade ]
5 Screws
Quantity: 3
• Tightening specification 4 Nm
6 Rear Shelf Crossmember
7 Rear Window
8 Retainer with Pins
Quantity: 4
• => [ (Item 1) Rear shelf without sun shade ] Rear Shelf Without Sun Shade
• Joined firmly with rear shelf - 1 -
9 Sun Shade Connector
10 Clamps
Quantity: 4
• Replace if damaged or deformed
Center Rear Belt Guide
Removing
- Unclip front catches on rear center belt guide - 1 -.
- To do this, slide (3409) between rear shelf - 3 - and belt guide - 1 -.
- Swing rear center belt guide - 1 - up about 45°.
- Remove rear center belt guide - 1 - from rear shelf - 3 -.
Installing
- Engage rear center belt guide - 1 - in rear shelf - 3 - starting at rear.
- Clip front catches on rear center belt guide - 1 - onto rear shelf - 3 -.
