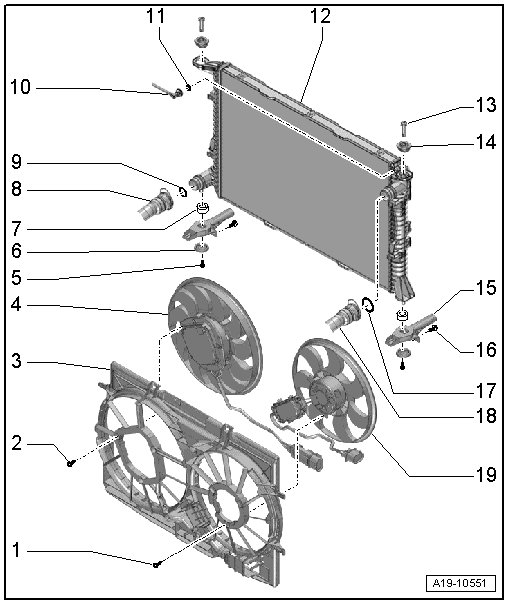

Radiator and Coolant Fan Overview

Radiator and Coolant Fan Overview


Risk of injury through fan turning on automatically.

• Disconnect the connectors before working near the fan shroud.






1 Bolt

• 5 Nm

2 Bolt

• 5 Nm

3 Fan Shroud

• Removing and installing, refer to => [ Fan Shroud ] Service and Repair

4 Coolant Fan (V7)

• With coolant fan control module (J293)

• Removing and installing, refer to => [ Coolant Fan ] Coolant Fan

5 Bolt

• 3.5 Nm

6 Rubber Buffer

7 Rubber Bushing

• For radiator

8 Coolant Hose

• Lift the retaining clamp to remove

9 O-ring

• Replace

10 Coolant Hose

• To the coolant reservoir

11 O-ring

• Replace

12 Radiator

• Removing and installing, refer to => [ Radiator ] Radiator

• change coolant after replacing

13 Retaining Pin

• Disengage and remove using screwdriver

14 Rubber Buffer

15 Radiator Bracket

16 Bolt

17 O-ring

• Replace

18 Coolant Hose

• Lift the retaining clamp to remove

19 Coolant Fan 2 (V177)

• With coolant fan control module 2 (J671)

• Removing and installing, refer to => [ Coolant Fan ] Coolant Fan
