Body - Automatic Window Lowering Inoperative
64 Door window automatic lowering inoperative66 11 11
2022566/2
January 19, 2011.
Supersedes Technical Service Bulletin Group 66 number 10 - 01 dated January 19, 2010 for the reasons listed below.

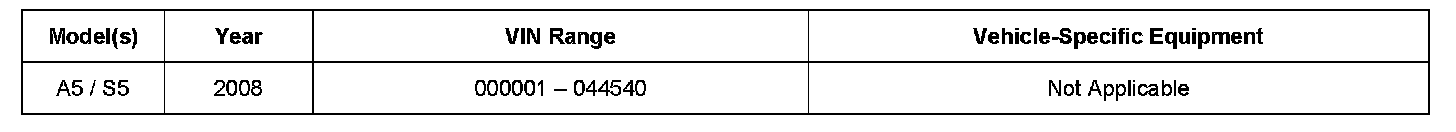

AFFECTED VEHICLES
CONDITION
Automatic lowering of door window is inoperative.
TECHNICAL BACKGROUND
In colder weather, the door window can freeze in the window channel seal. As a result, the automatic lowering of the door window during opening and closing of the doors malfunctions.
PRODUCTION SOLUTION
Improved window channel seal.
SERVICE
1. Replace the window channel seal(s) with 8T0 854 543E and/or 8T0 854 544E.
2. Prepare to adjust the door window by deactivating the automatic lowering function and ensuring the door window is fully up. This can be achieved by closing the latch on the door lock while the door is open.
3. Adjust door window according to the procedure and specifications found in ElsaWeb >> Body >> Body Exterior >> 64 Glass, Window Regulators >> Description and Operation >> Bolted Windows.
After the improved window channel seal is installed and the window adjustment is performed, the door can be opened and closed in the event of freezing.
WARRANTY
REQUIRED PARTS AND TOOLS
ADDITIONAL INFORMATION
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
