Cover on Vehicles With Adaptive Cruise Control

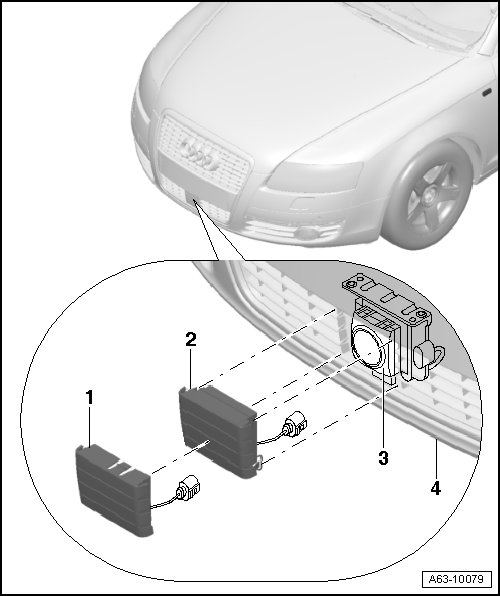

Cover on Vehicles with Adaptive Cruise Control





1 Radiator grille cover (standard)

• To remove, carefully pull cover forward slightly out of bumper cover without damaging ribs.

• Disconnect electrical connection and remove cover forward off of bumper cover.

2 Radiator grille cover (S line)

• Removal and installation is same as with standard version.

3 ACC lens

• Removing and installing, refer to => Suspension, Wheels, Steering 44 Removal and Installation

• When installing, the heating cable must not lie in front of ACC sensor radar lens; rather, it must be routed to the side outside of the cover housing so that no ACC operation malfunctions occur.

4 Bumper cover
