Door Opener Lamp Bulb

Door Opener Lamp Bulb

Removing

- Remove the affected door trim panel.

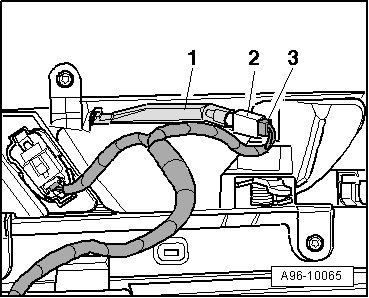

- Disconnect electrical connector - 3 -.





- Turn socket - 2 - to the left and pull out at door opening handle - 1 -.

Installing

Install in reverse order of removal, observing the following:

- Insert light bulb for door opener light into opening and engage.

- Install respective door trim.
