Window Frame Seal

Window Frame Seal

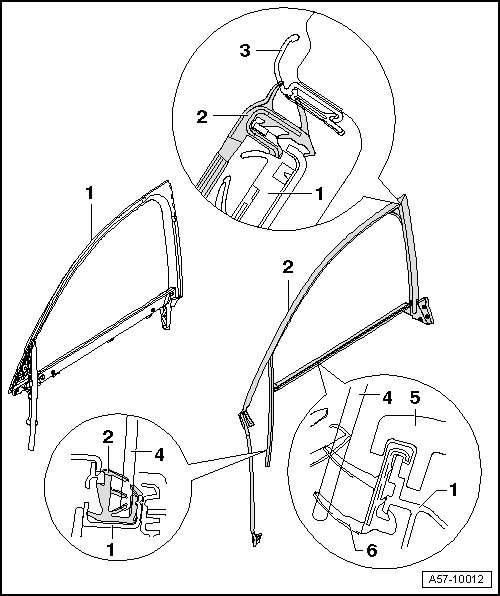

1 Window frame

• Removed.

2 Window frame seal

- To install, hook seal securing pieces into upper area of A-pillar and corner of B-pillar in window frame.

• Press seal sideways onto window frame.

• Seal must not be installed by knocking it on, rather seal must be pressed in.

• Use soapy water to assist assembly of seal.

3 Roof trim molding

4 Door window

5 Door Trim

6 Inner window shaft strip

• Before removal, remove door trim

• To remove, pull off sideways

• To install, first hook onto bottom of window frame, then press onto top.

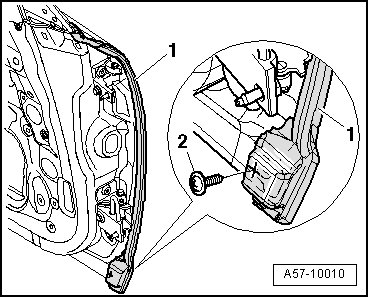

Install Lower Seam Seal





• To make installation easier, you can remove the entire door from the door hinges and install again without adjusting. Refer to => [ Front Door ] Front Door

• Clean adhesive surface before installing seal.

• Adhesion surface must be free of dust and grease.

- Clip seal into top.

- Remove protective seal foil - 1 -beginning at bottom up to area of impression.

- Attach seam seal up to area of impression.

- Affix lower formed piece and bond on seam seal completely in lower area.

- Remove remaining protective foil and bond on seal in upper area.

- Screw in bottom of seal and tighten screw - 1 - to 1 Nm.

- Press door cover rubber lip onto formed piece on bottom of - A - post.
