Multimedia Control Head

Multimedia Control Head

Removing





- Remove front center console. Refer to => [ Front Center Console ] Front Center Console.

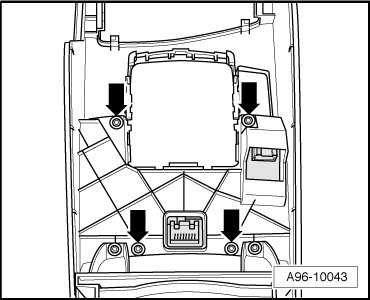

- Remove bolts - arrows -.

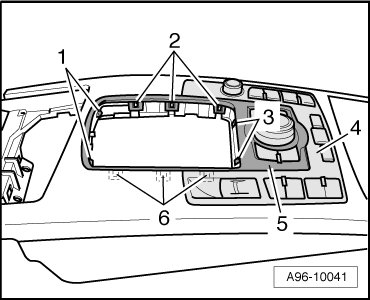

- Carefully release clips - 1 to 3 - and - 6 - on decorative frame - 5 - with a narrow screwdriver.





- Remove Multimedia Control Head (E380) decorative frame.

- Remove Multimedia Control Head (E380) - 4 -.

Installation

Installation is reverse of removal, but note the following:

- Install front center console. Refer to => [ Front Center Console ] Front Center Console.

Tightening Specifications
