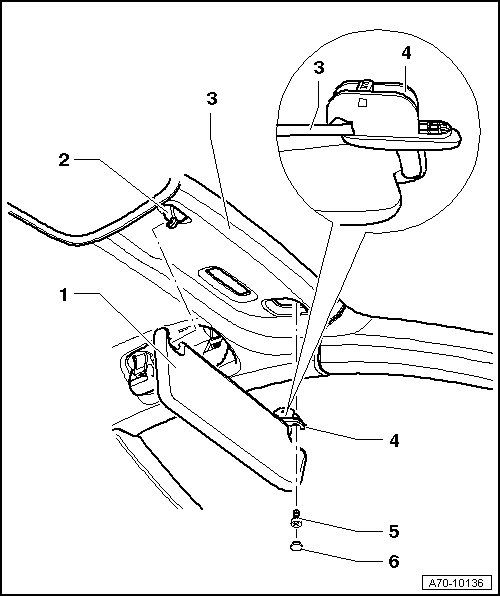

Sun Visor

Sun Visor





1 Sun Visor

• Removing

- Disengage sun visor in vehicle center from sun visor center bracket - 2 - and fold this to side.

- Carefully pry cap - 6 - off with screwdriver.

- Remove the bolt - 5 -.

- Swing visor bearing down and remove sun visor.

• Installation

- Engage sun visor bearing tab - 4 - in headliner cut-out - 3 -.

- Tighten screws - 5 -.

- Press cap - 6 - onto sun visor bearing.

- Engage sun visor in sun visor center bracket - 2 -.

2 Sun Visor Center Bearing

• Removing and installing, refer to => [ Sun Visor Center Mount ] Sun Visor Center Mount

3 Headliner

4 Sun Visor Bearing

5 Bolt

2 Nm

• Replace

6 Cover
