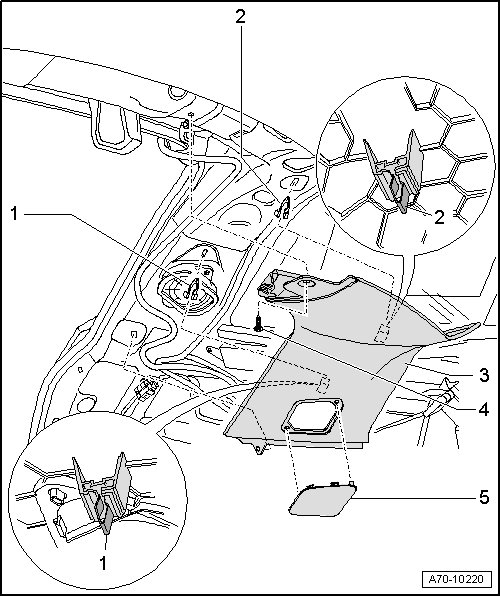

D-Pillar Trim Component Overview

D-Pillar Trim Component Overview





1 Spring Clamp

• Replace if damaged

2 Spring Clamp

• Replace if damaged

3 D-pillar Trim

• Removing and installing, refer to => [ D-Pillar Trim ] D-Pillar Trim

4 Bolt

4 Nm

• Self-locking

• Replace

• Threaded holes for screws must always be cleaned (for example, with thread cutter)

5 Loudspeaker Cover
