Backrest Cover

Backrest Cover

Special tools, testers and auxiliary items required

• Pry lever (80 - 200)

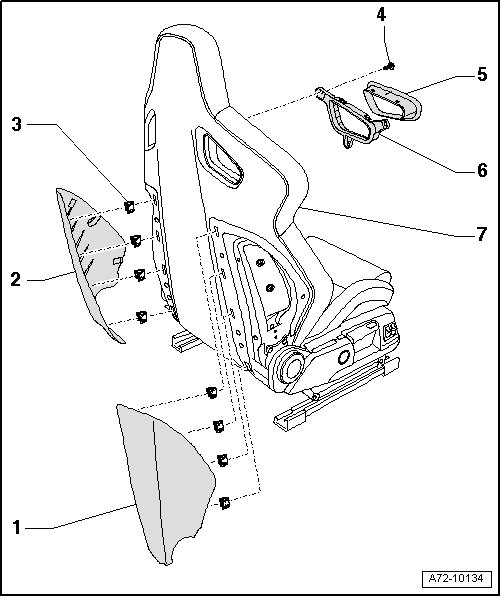

1 Right backrest cover

• Removing and Installing => [ Backrest Cover, Removing and Installing ]

2 Left backrest cover

• Removing and Installing => [ Backrest Cover, Removing and Installing ]

3 Retaining clip

4 Bolt

• 2.5 Nm

• Replace with locking compound

• Locking compound.

5 Outer part of belt guide

• Removing and Installing => [ Outer part of belt guide, removing and installing ]

6 Inner part of belt guide

• To remove, remove backrest cover => [ Backrest Cover and Upholstery ] Bucket Seat Covers and Upholstery

7 Backrest frame

Backrest Cover, Removing and Installing





- Affix backrest panel all around trim - 1 - using adhesive tape - 2 -.

- Using pry lever (80-200), pry off upper backrest cover at inner side, starting from backrest panel.

- Disengage clip at front corner of backrest panel extremely carefully.

Outer part of belt guide, removing and installing

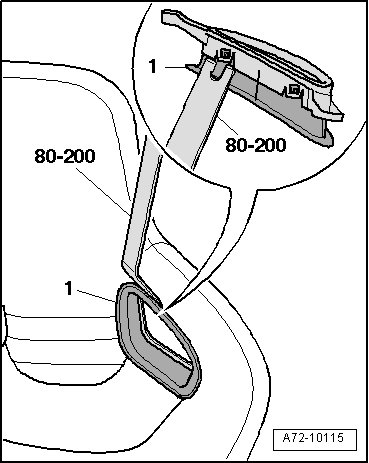

- Carefully guide Pry Lever (80-200) between backrest cover and outer part of belt guide.

- Carefully press to disengage outer part of belt guide from inner part.
