Side Trim

Side Trim

Removing





- Move the seat all the way forward to the highest position.

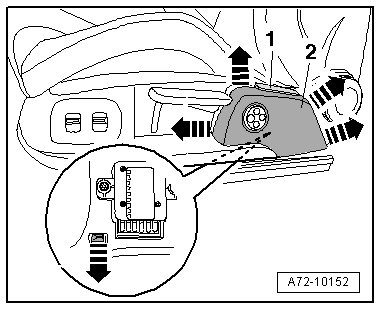

- Release the clips - arrows - and remove the side trim - 2 -.

• Ignore - 1 -.

Installation

Installation is reverse of removal, but note the following:

- Press the outer side trim on until it engages audibly.
