Sill and Tunnel Side Trim Assembly Overview

Power Front Memory Seats, S6

Versions for specific countries: vehicles from 08/06

• Modular wiring routing came into effect with series production of seats.

• Check version of front seat and of vehicle and perform repairs accordingly.

• Note the two possible versions of the modular wiring routing, Modular Light or Modular => [ Modular Wiring Routing Versions ] Standard Front Seats Overview.

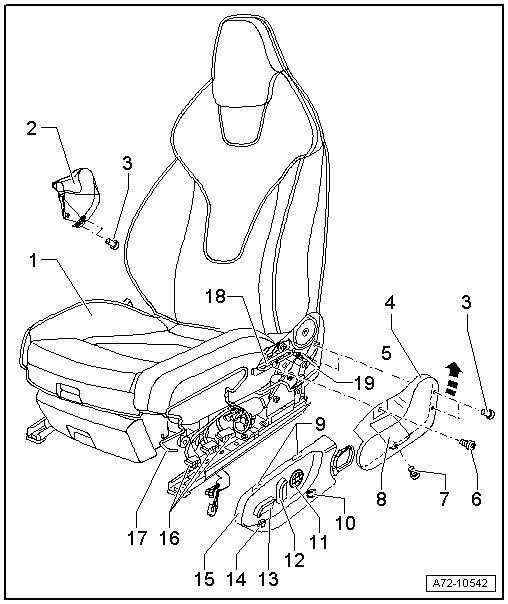

Sill and Tunnel Side Trim Assembly Overview





1 Front seat

2 Tunnel side trim

• Removing and Installing => [ Trim, Tunnel Side ] Power Front Memory Seats, S6

3 Expanding rivet

• Qty. 4

4 Rear sill side trim

• Removing and Installing => [ Front and rear sill side trim,
removing and installing ] Power Front Memory Seats, S6

5 Bracket

6 Bolt

• 1.0 Nm

7 Bolt

• 3.5 Nm

8 Assembly cover

• Removing and Installing => [ Assembly cover, removing and
installing ] Power Front Memory Seats, S6

9 Bracket

• Qty. 2

10 Eye

11 Driver Seat Lumbar Support Adjustment Switch (E176) or Front Passenger's Seat Lumbar Support Adjustment Switch (E177)

• Removing and Installing => [ Lumbar Support Adjustment Switches ] Power Front Memory Seats, S6

12 Actuator

• For Backrest Adjustment Button (E425)

• Removing and Installing => [ Backrest Adjustment Actuator ] Power Front Memory Seats, S6

• Buttons (E418), (E421), (E424) and (E425) are grouped in a shared housing => [ (Item 13) Actuator ].

13 Actuator

• For the seat forward/back adjustment button (E418)

• For Inclination Adjustment Button (E421)

• For Seat Height Adjustment Button (E424)

• Removing and Installing => [ Seat Adjustment Actuator ] Power Front Memory Seats, S6

• Buttons (E418), (E421) and (E424) are grouped in a shared housing => [ (Item 12) Actuator ].

14 Catch

15 Front sill side trim

• Removing and Installing => [ Front and rear sill side trim,
removing and installing ] Power Front Memory Seats, S6

16 Connector

• Qty. 3

17 Front retaining bracket

• Removing and Installing => [ Front Retaining Bracket ] Power Front Memory Seats, S6

18 Upper retaining bracket

• Removing and Installing => [ Upper Retaining Bracket ] Power Front Memory Seats, S6

19 Rear retaining bracket

• Removing and Installing => [ Rear Retaining Bracket ] Power Front Memory Seats, S6
