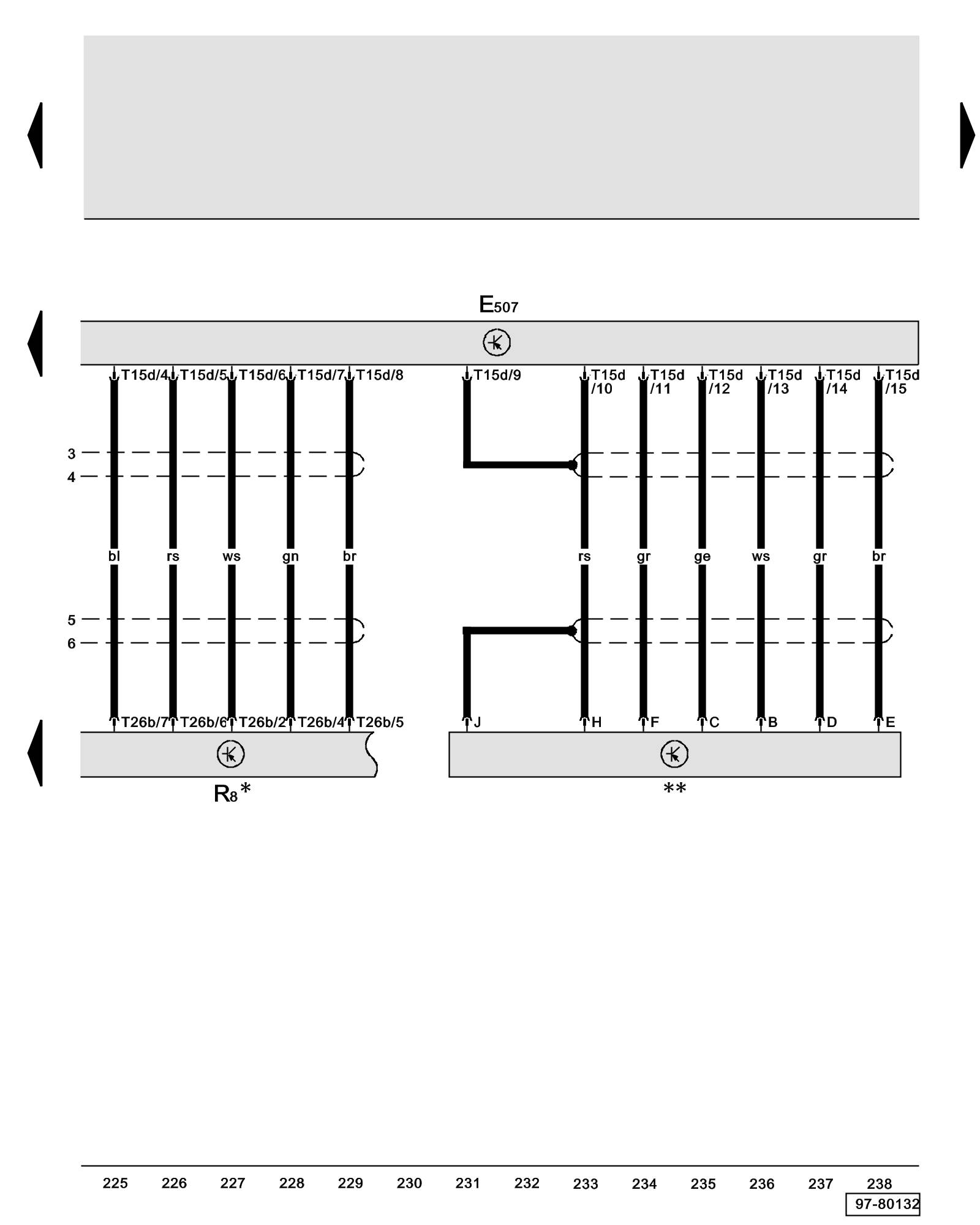

Diagram 48/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Signal system Topas





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E507 - Special Signals Control Head

R8 - Two-Way Radio, Walkie Talkie

T15d - 15-Pin Connector, on special signals control head

T26b - 26-Pin Connector, on two-way radio

* - Bosch MBG 228

** - Two-Way Radio Handset
