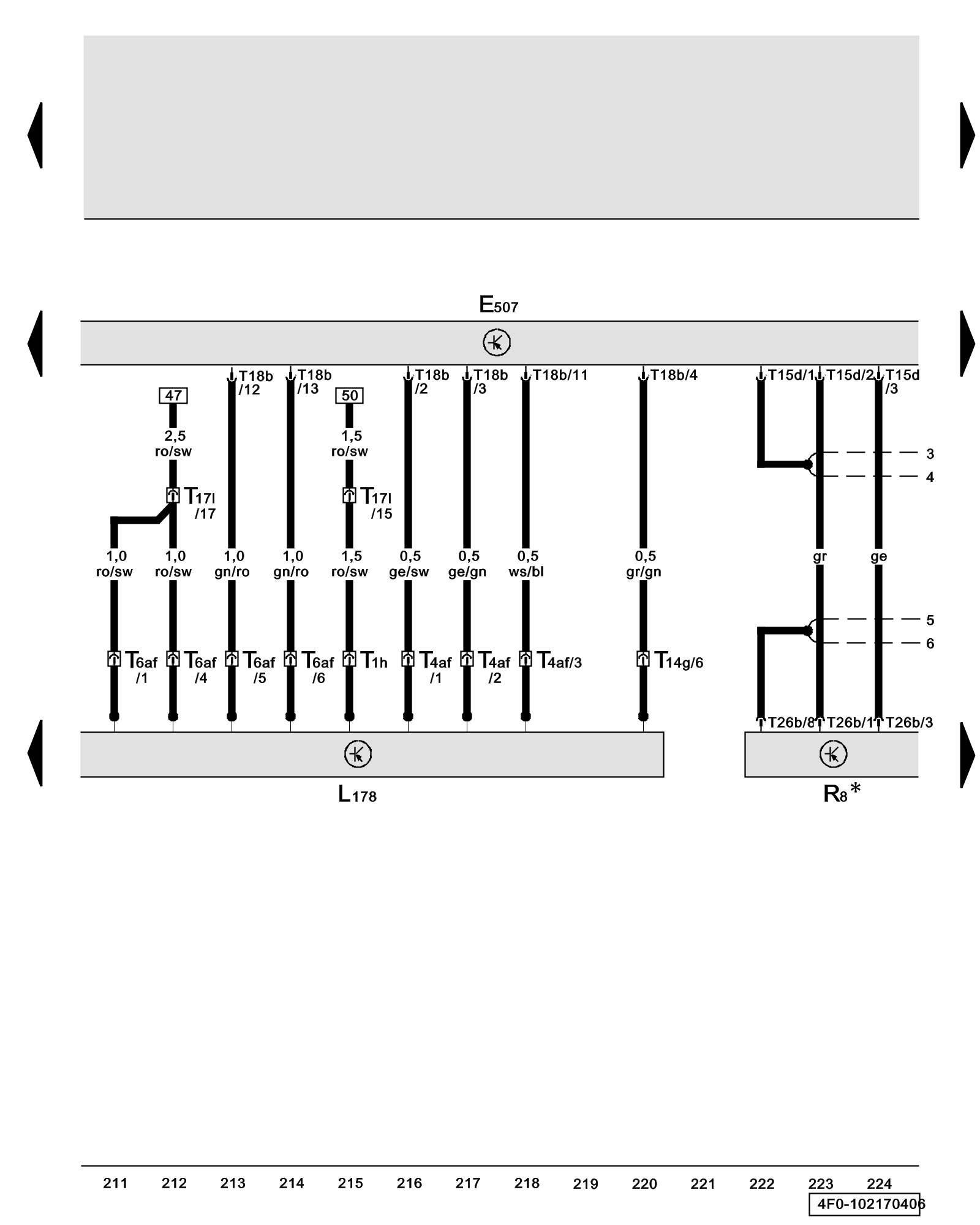

Diagram 102/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Signal system Topas





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E507 - Special Signals Control Head

L178 - Emergency/Text Light and Special Signals Unit

R8 - Two-way Radio

T1h - Single Connector, to special signals roof carrier

T4af - 4-Pin Connector, to special signals roof carrier

T6af - 6-Pin Connector, to special signals roof carrier

T14g - 14-Pin Connector, to special signals roof carrier

T15d - 15-Pin Connector, on special signals control head

T17l - 17-Pin Connector, brown, connector station A-pillar, right Overview of Connector Stations and Connectors

T18b - 18-Pin Connector, on special signals control head

T26b - 26-Pin Connector, on two-way radio

* - Bosch MBG 228
