Diagram 69/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

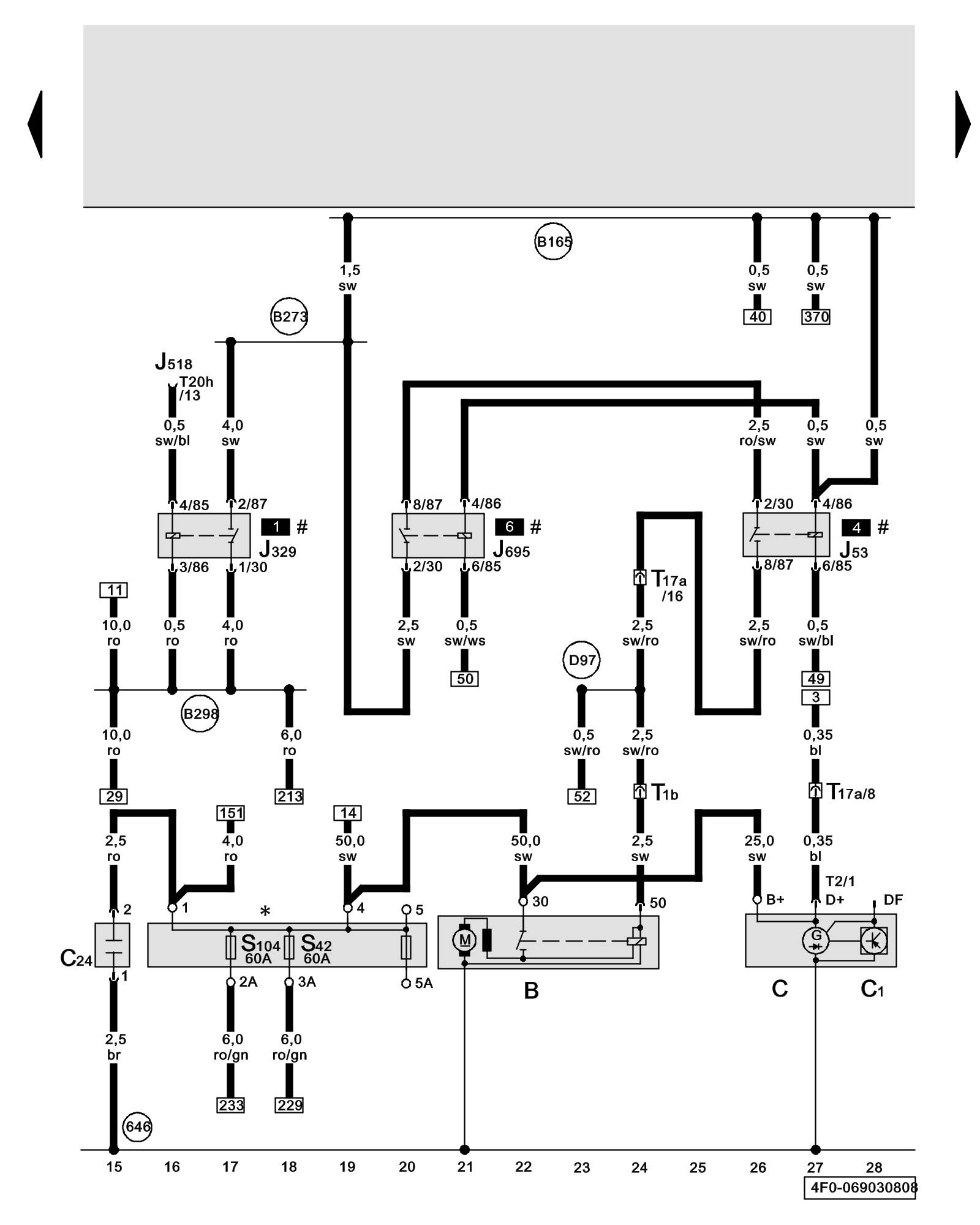

Starter, Generator (GEN), Power Supply Relay (terminal 15), Starter Relay, Suppressor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

C - Generator (GEN)

C1 - Voltage Regulator (VR)

C24 - Suppressor

J53 - Starter Relay Overview of Relay Carrier

J329 - Power Supply Relay (terminal 15) Overview of Relay Carrier

J518 - Access/Start Control Module Overview of Control Modules

J695 - Starter Relay 2 Overview of Relay Carrier

S42 - Coolant Fan Single Fuse Overview of Fuses

S104 - Second Speed Coolant Fan Fuse Overview of Fuses

T1b - Single Connector, black, in front right engine compartment

T2 - Double Connector, black, on generator (GEN)

T17a - 17-Pin Connector, red, connector station electronics box in left plenum chamber Overview of Connector Stations and Connectors

T20h - 20-Pin Connector, black (Connector A), on access/start control module

(646) - Ground Connection 2 (on firewall) Overview of Ground Connections in Front Part of Vehicle

(B165) - Plus Connection 2 (15) (in interior wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B298) - Plus Connection 2 (30) (in main wiring harness)

(D97) - Connection (50) (in right engine compartment wiring harness)

* - Main fuse carrier electronics box in right plenum chamber

# - 9-Pin relay carrier, behind driver's storage compartment

Previous Diagram 69/2 (Tracks 1-14)

Next Diagram 69/4 (Tracks 29-42)
