Diagram 92/6 (Tracks 57-70)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Level Control System Control Module, Body Acceleration Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

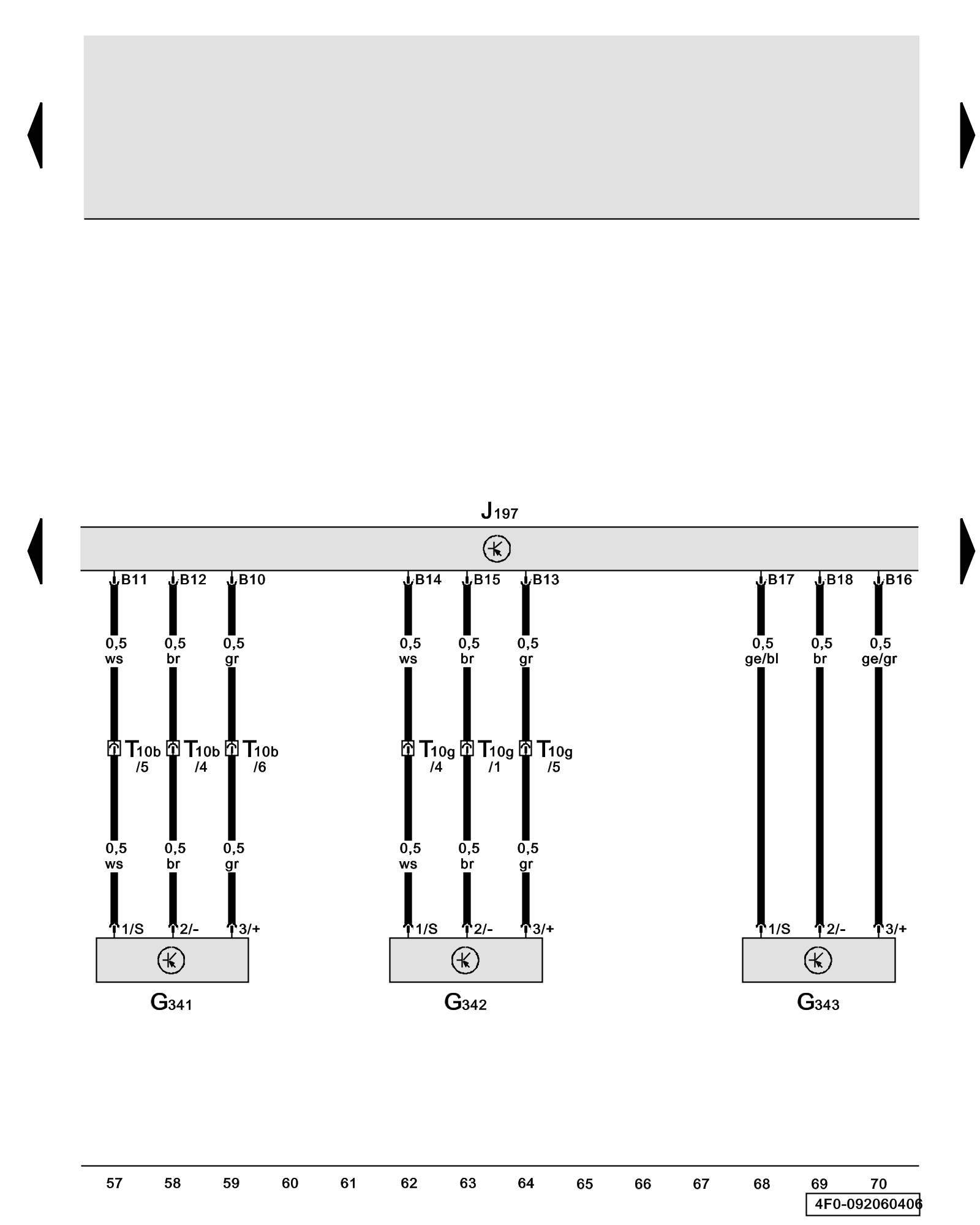

G341 - Left Front Body Acceleration Sensor Self Leveling Suspension

G342 - Right Front Body Acceleration Sensor Self Leveling Suspension

G343 - Rear Body Acceleration Sensor Self Leveling Suspension

J197 - Level Control System Control Module Overview of Control Modules

T10b - 10-Pin Connector, blue, connector station A-pillar, left Overview of Connector Stations and Connectors

T10g - 10-Pin Connector, yellow, connector station A-pillar, right Overview of Connector Stations and Connectors

Previous Diagram 92/5 (Tracks 43-56)

Next Diagram 92/7 (Tracks 71-84)
