Fastener Tightening Specifications

Fastener Tightening Specifications

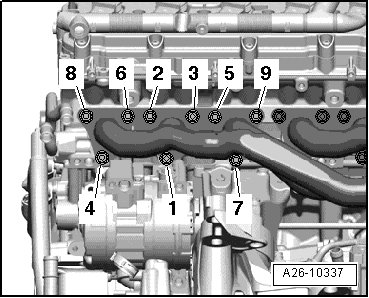

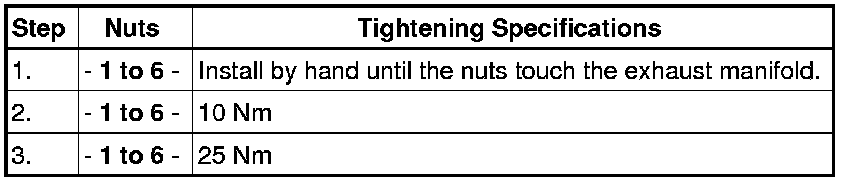

- Tighten the left rear exhaust manifold nuts in three steps in the specified tightening sequence:









- Tighten the left front exhaust manifold nuts in three steps in the specified tightening sequence:

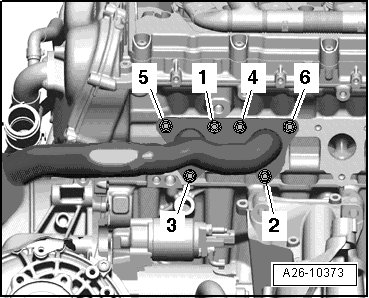

- Tighten the right rear exhaust manifold nuts in three steps in the specified tightening sequence:









- Tighten the right front exhaust manifold nuts in three steps in the specified tightening sequence:

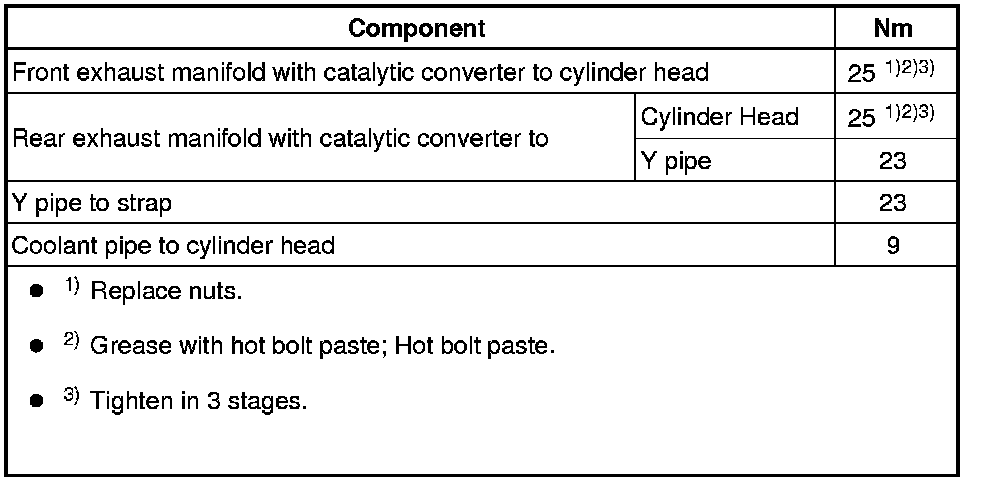

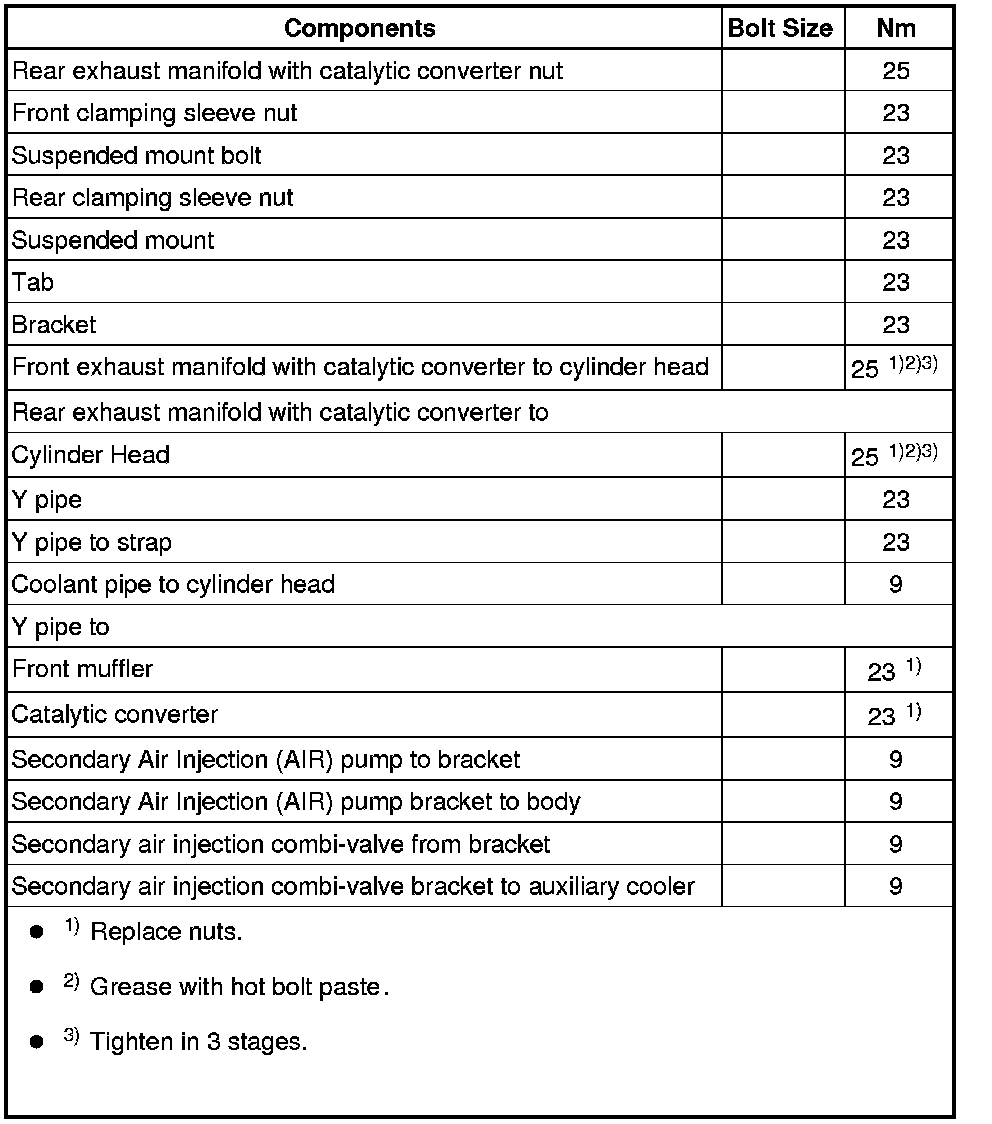

Tightening Specifications
