Control Modules Behind Driver's Storage Compartment

Control Modules

Control modules behind driver's storage compartment

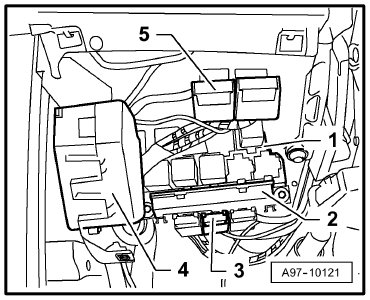

Component Location:







1 - 9-point relay and fuse carrier
2 - Vehicle Electrical System Control Module -J519-
3 - Fuses on Vehicle Electrical System Control Module -J519-
4 - Left instrument panel fuse carrier
5 - Relay and fuse carrier on steering cross member

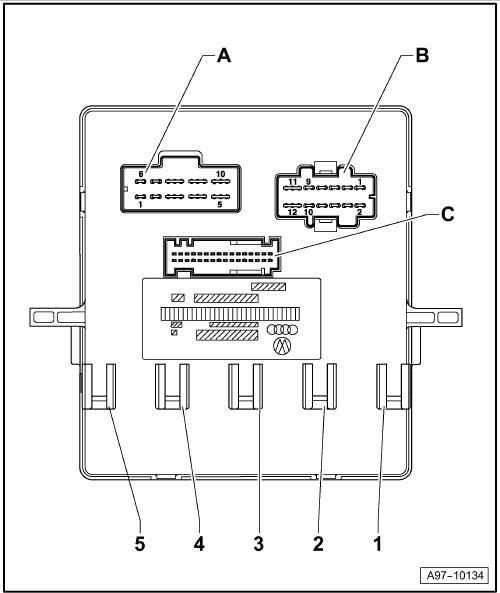

Pin Arrangements:


Vehicle Electrical System Control Module -J519-
Connector:





A - 10-Pin Connector, black -T10-

B - 12-Pin Connector, black -T12-

C - 32-Pin Connector, white -T32c
