Vehicle Diagnosis, Testing and Information Systems







VAS 5051B, Connecting

• Follow the current operating instructions for the vehicle diagnosis, testing and information system (VAS 5051B), which can be displayed by selecting the Administration and User Documentation.

Special tools, testers and auxiliary items required

• Vehicle Diagnosis, Testing and Information System (VAS 5051B)

• Diagnosis Lead (VAS 5051B/1) or

• Diagnosis Lead 3 m (VAS 5051B/2) or

• Remote Diagnosis Head (VAS 5054 A) (with USB wire) or

• Diagnosis Interface (VAS 5055) with USB wire

• Use the correct diagnostic cable when using the (VAS 5052 A) or (VAS 6150).

Procedure

- Engage the parking brake or operate the electromechanical parking brake.

- Shift the shift lever into neutral or place the selector lever in the "P" or "N" position.

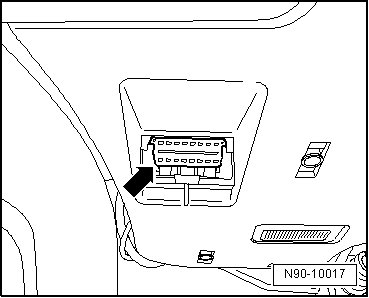

- With the ignition turned off, connect the (VAS 5051B) with the diagnosis lead to the diagnostic connector - arrow -.





- When using the (VAS 5054 A) or the (VAS 5055) refer to the operating instructions.

- Turn on the ignition.

- Turn off all electrical consumers.

• If a error message appears on the screen of the vehicle diagnostic tester, refer to the operating instructions.
