Special Purpose Vehicle Control Module, Removing and Installing

Special Purpose Vehicle Control Module, Removing and Installing

Removing

- If control module is replaced, select "Guided Functions" of respective control module in.

- Switch off ignition and remove ignition key.

- Remove glove compartment.

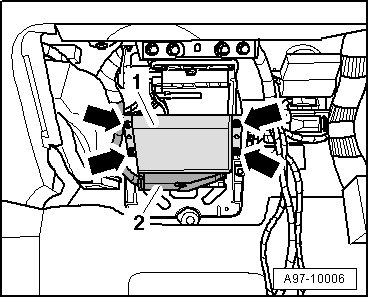

- Remove screws - arrows -.





- Remove Special Purpose Vehicle Control Module (J608) - item 1 - from bracket.

- Disconnect electrical connector - 2 -.

Installing

Install in reverse order of removal, observing the following:

- Install glove compartment.

Tightening Specifications
