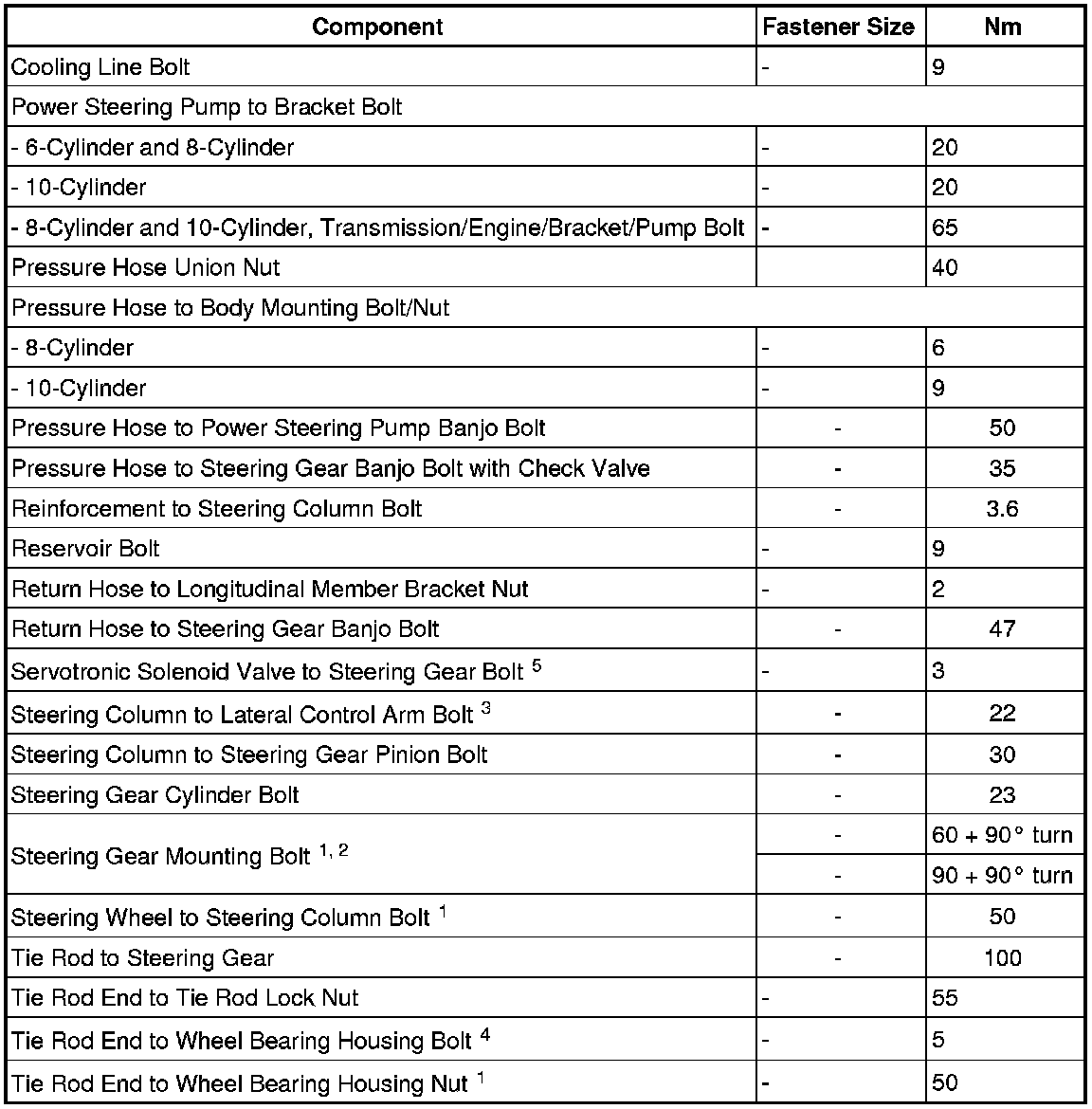

Fastener Tightening Specifications

Fastener Tightening Specifications






• 1 Always replace if removed.

• 2 Follow tightening sequence. Refer to => [ Tightening Sequence: ] Power Steering Gear.

• 3 Observe assembly sequence. Refer to => [ Installation Sequence ] Steering Column.

• 4 For adjusting track constants "S".

• 5 Follow tightening sequence. Refer to => [ Servotronic Solenoid Valve ] Servotronic Solenoid Valve.
