Suspension, Lifting

Suspension, Lifting

Special tools, testers and auxiliary items required

• Spacer (V.A.G 1925)

Suspension 1BA, 1BE, 1BR, 1BV, 1BK, 1BB, 1BD, 1BY, 2MC, 2MS

During the next step make sure that the wheels do not lose contact with the turntables when the vehicle is raised!

If this should happen, turntables should not be moved. This would give false results!

- Position axle lift under front jacking points and raise vehicle.

• The vehicle is raised by 60 mm.

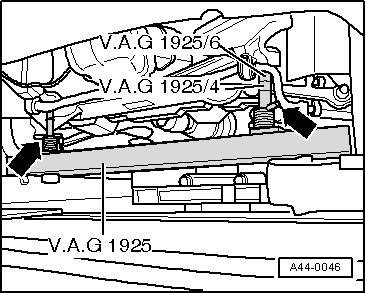

- Push cylinder out of threaded spindles and fix with locking pins.






• Make sure that the securing pins - arrows - are correctly positioned!

- Lower vehicle onto (V.A.G 1925).
