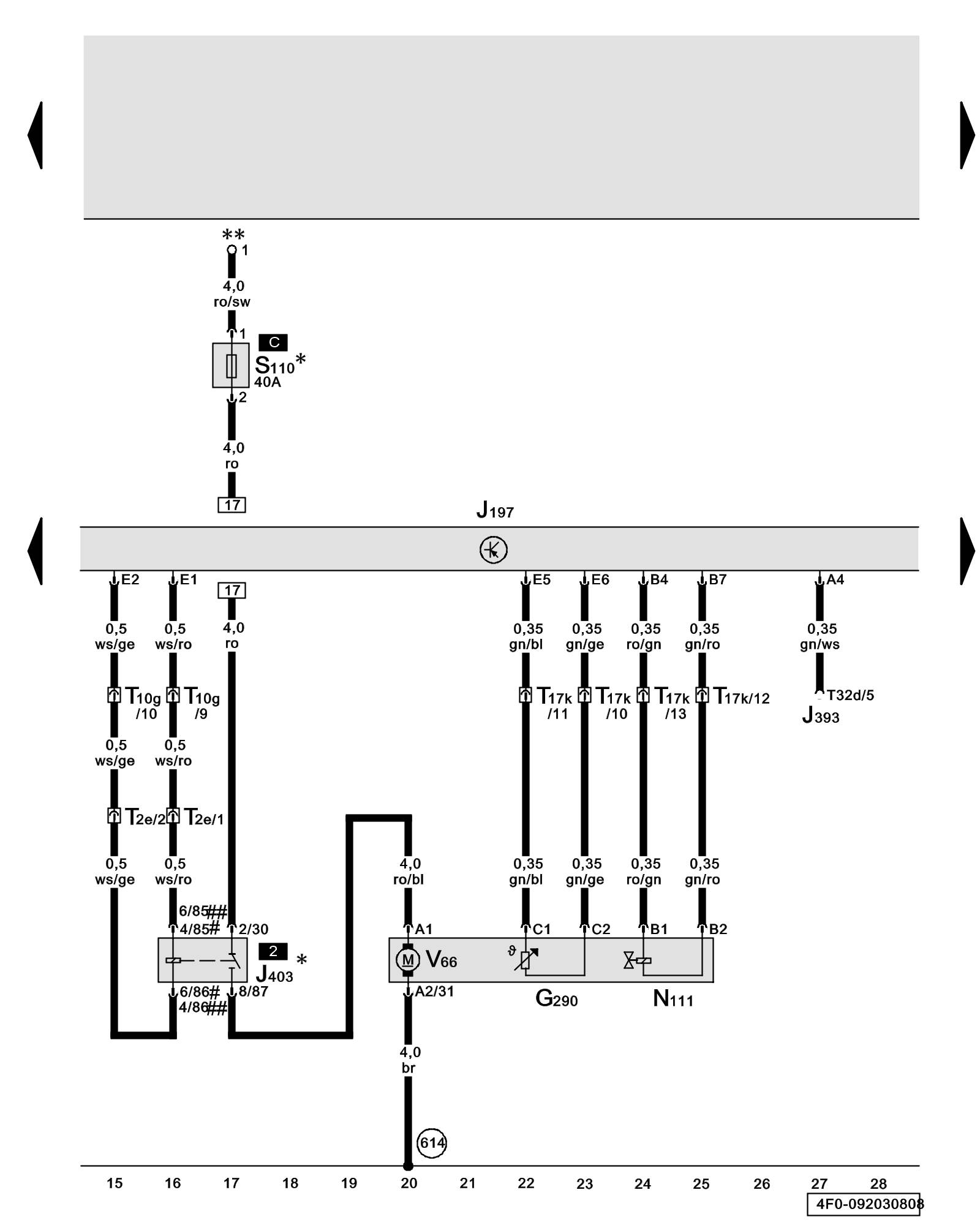

Diagram 92/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Level Control System Control Module, Level Control System Compressor Relay, Level Control System Compressor Motor, Level Control Pump Temperature Sensor, Level Control System Solenoid





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G290 - Level Control Pump Temperature Sensor Self Leveling Suspension

J197 - Level Control System Control Module Overview of Control Modules

J393 - Comfort System Central Control Module Overview of Control Modules

J403 - Level Control System Compressor Relay Overview of Relay Carrier

N111 - Level Control System Solenoid Self Leveling Suspension

S110 - Self-Leveling System Fuse Overview of Fuses

T2e - Double Connector, black, in front right engine compartment

T10g - 10-Pin Connector, yellow, connector station A-pillar, right Overview of Connector Stations and Connectors

T17k - 17-Pin Connector, orange, connector station A-pillar, right Overview of Connector Stations and Connectors

T32d - 32-Pin Connector, blue (Connector B), on comfort system central control module

V66 - Level Control System Compressor Motor Self Leveling Suspension

(614) - Ground Connection 2 (in engine compartment, right) Overview of Ground Connections in Front Part of Vehicle

* - Relay carrier electronics box in right plenum chamber

** - Main fuse carrier electronics box in right plenum chamber

# - Through May 2007

## - from June 2007
