Transmission, Securing On Assembly Stand

Transmission, Securing on Assembly Stand

Special tools, testers and auxiliary items required

• Holding plate (VW 309)

• Holding fixture (VW 313)

• Transmission support (VW 353)

• Engine and Transmission Holder (VW 540)

• Workshop crane (VAS 6100)

Securing transmission in horizontal position

- Secure transmission on Holding Fixture (VW 540) - arrows -.





- Insert transmission in Holding Fixture (VW 313) with Shop Crane (VAS 6100). Refer to => [ Transmission, Transporting ] 02E Transmission.

There is a risk the transmission could swing around when it is turned.

• Because center of gravity is located outside the holding fixture center of rotation, a second technician must hold the transmission housing to rotate.

There is a risk of oil leaking when turning the transmission.

• Ventings for the transmission housing must be closed before turning a filled transmission on the assembly stand so that the oil pan faces upward.

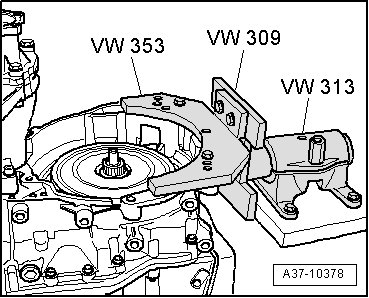

Securing transmission in vertical position

- Secure transmission to transmission support (VW 353) and place into holding fixture (VW 313) with holding plate (VW 309).
