Installing Convertible Top to VAS 6586

Installing Convertible Top to VAS 6586

Clamping

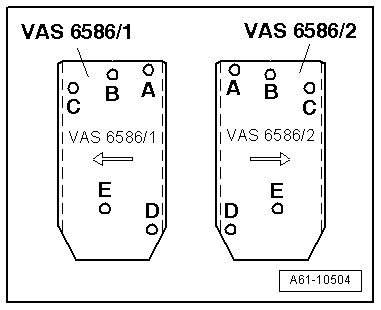

• Lightly secure both mounting plates with mounting points - B - and - E - on the main bearing.

• The arrows must point forward in the direction of travel.






- Lightly secure the main bearing on the left and right with the bore holes shown in the figure - arrows - to the mounting plates via mounting points - B - and - E -.






- Insert the convertible top with the mounting plates into the mounts on the (VAS 6586) from above.

- Tighten the screws on the main bearing.
