Diagram 157/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

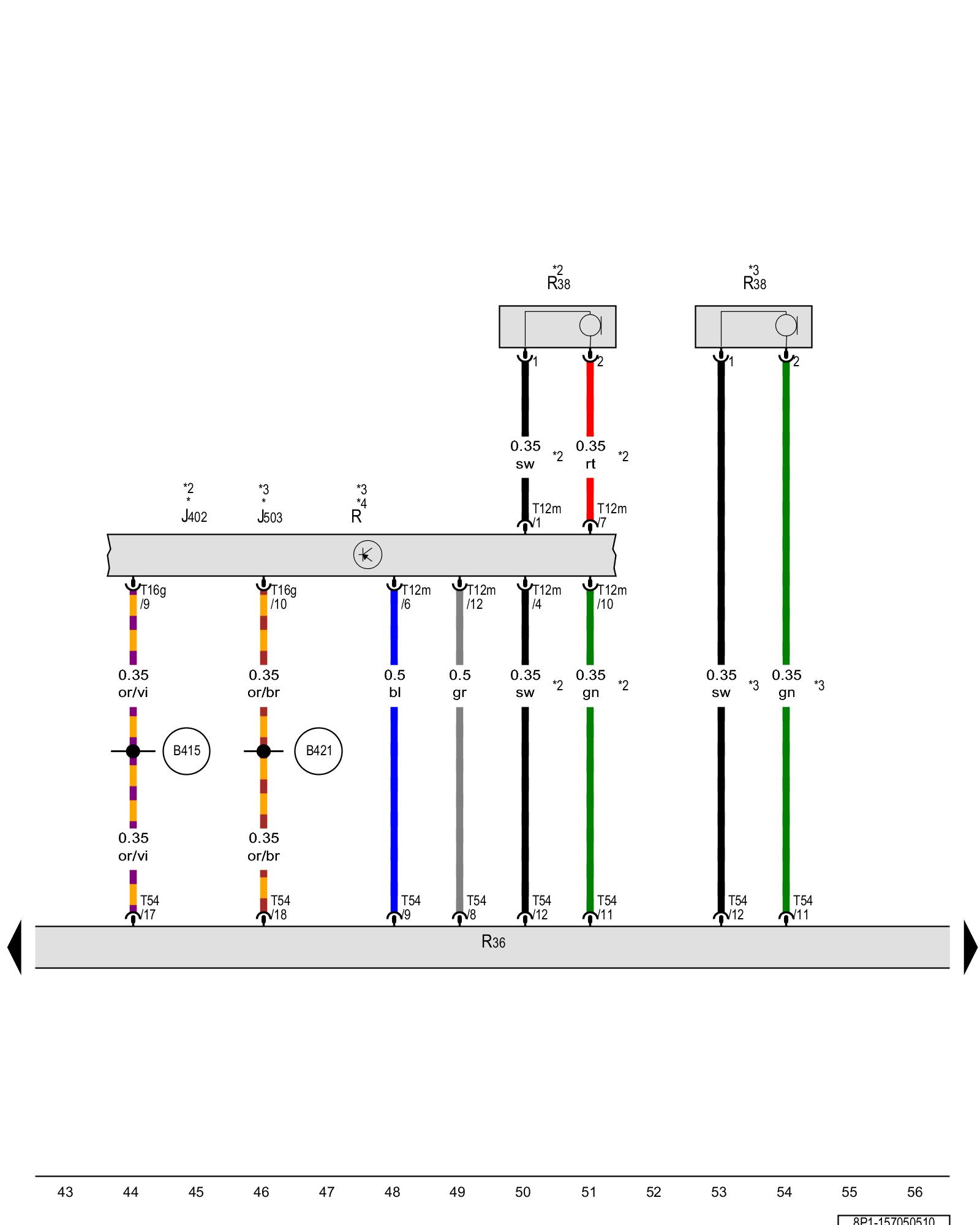

Operating electronics/navigation system control module, Radio/navigation display unit control module, Radio, Telephone transceiver, Telephone microphone





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J402 - Operating electronics/navigation system control module Control Modules in Interior Of Vehicle

J503 - Radio/navigation display unit control module Control Modules in Interior Of Vehicle

R - Radio Control Modules in Interior Of Vehicle

R36 - Telephone transceiver Phone System Component Overview

R38 - Telephone microphone Phone System Component Overview

T12m - 12-pin connector

T16g - 16-pin connector

T54 - 54-pin connector

(B415) - Infotainment CAN Bus high connection 1 (in main wiring harness)

(B421) - Infotainment CAN bus low connection 1 (in main wiring harness)

* - Only for vehicles with radio navigation system

*2 - Only for vehicles with a speech recognition system

*3 - Only for vehicles without speech recognition system

*4 - Only for vehicles with a radio

Previous Diagram 157/4 (Tracks 29-42)

Next Diagram 157/6 (Tracks 57-70)
