Diagram 90/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

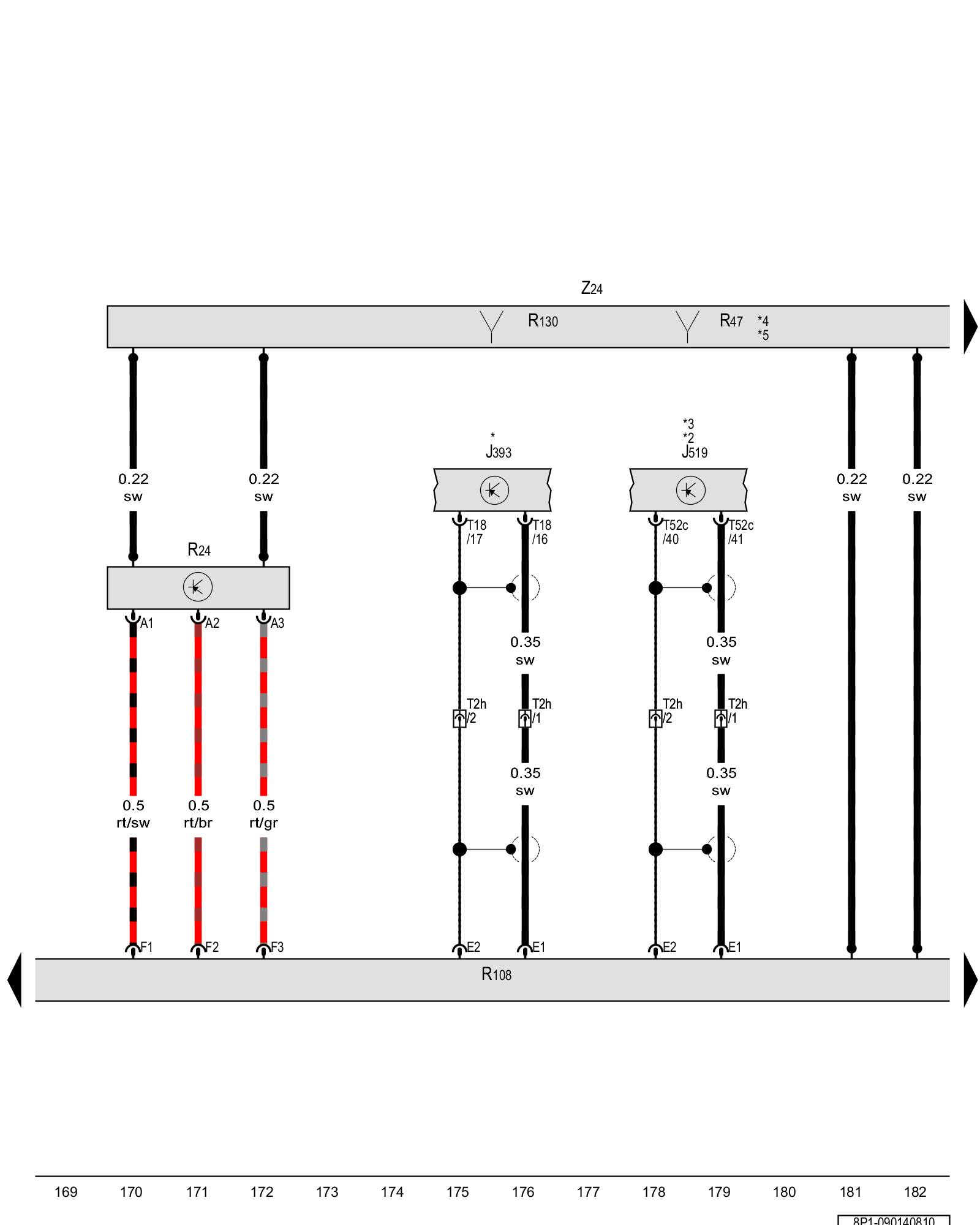

Comfort system central control module, Vehicle electrical system control module, Antenna amplifier, Central locking and anti-theft alarm system antenna, Left antenna module, Rear window antenna 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort system central control module Overview Of Control Modules

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

R24 - Antenna amplifier Locations

R47 - Central locking and anti-theft alarm system antenna Locations

R108 - Left antenna module Locations

R130 - Rear window antenna 1 Locations

T2h - Double connector, on the right C-pillar

T18 - 18-pin connector

T52c - 52-pin connector

Z24 - Rear window defogger with window antenna Locations

* - Through April 2009

*2 - From May 2009

*3 - Refer to applicable convenience system wiring diagram

*4 - Omitted as a running change

*5 - Only for RS3

Previous Diagram 90/13 (Tracks 155-168)

Next Diagram 90/15 (Tracks 183-196)
