Compact Disc Player (CD): Description and Operation

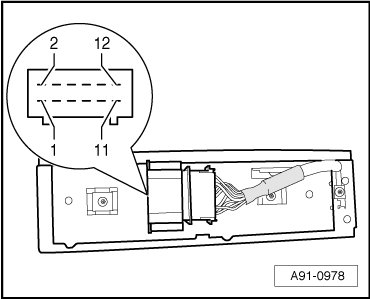

CD Changer Connector and Connector Assignments

• Unlisted connector terminals are not used.

Black 12-Pin Connector





1 Data out to Radio (R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
2 CLK out to Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
3 Radio ground/terminal 31 (with RNS/radio generation II+)
4 Data in from Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
6 Permanent positive from Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
7 Right signal to Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
8 Positive switched from Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
9 Signal ground from Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
10 Left signal to Radio/Operating Electronics, Navigation Control Module/Radio/Navigation Display Control Module
11 TOC Check Control (not used)
12 Terminal 58 (not used)
