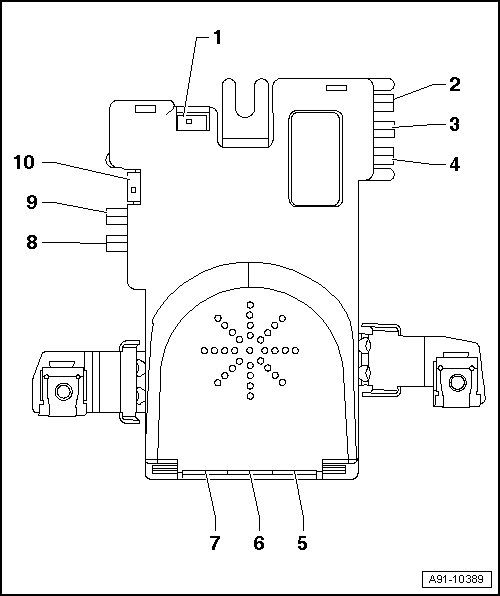

Left Antenna Module Connectors

Left Antenna Module Connectors

1 Connection (Black) rear window antenna 1 (R130)/central locking and anti-theft alarm system antenna (R47)

2 CLS Connection (Gray) to Comfort System Central Control Module (J393)

3 HF Connection (White) to the Radio (R)/Operating Electronics/Navigation System Control Module (J402)/Radio/Navigation Display Unit Control Module (J503)

4 IF Connection (Black) from the Radio (R)/Operating Electronics/Navigation System Control Module (J402)/Radio/Navigation Display Unit Control Module (J503)

5 1-Pin Connector to the Rear Window Defogger (Z1) (-)

6 1-Pin Connector to the Rear Window Defogger (Z1) (+)

7 1-Pin Connector from the Vehicle Electrical System Control Module (J519)

8 TV2 Connection (Black) to the Navigation/TV Tuner (J415)

9 TV1 Connection (Brown) to the Navigation/TV Tuner (J415)

10 3-Pin Connector to the Antenna Amplifier (R24)
